[Closed] Isis BB help?

3 Posts
4 Users
0 Reactions
51 Views
Posts: 9
Free Member
Topic starter

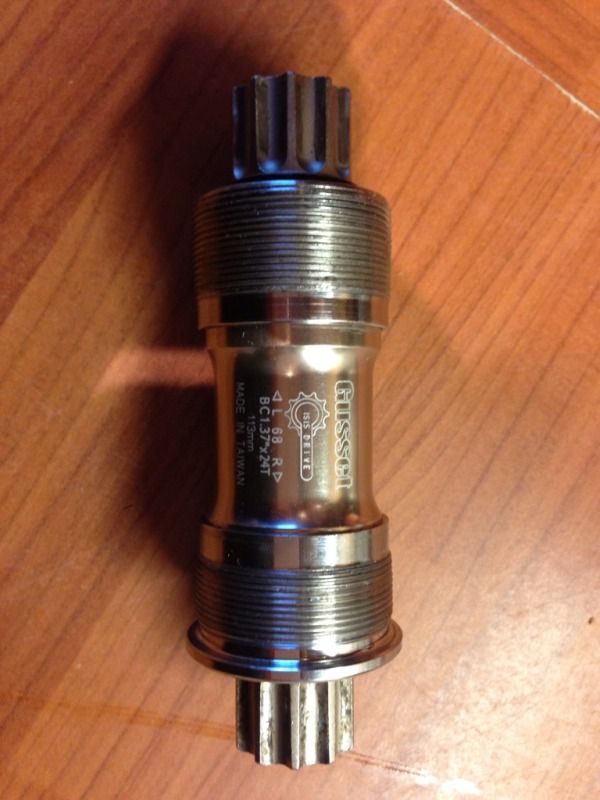

Have just bought a middleburn with this Isis bb, its a 68 x 113mm, my bb shell is 73mm. Would I be able to get this to fit? Also, what does the 113mm measurement refer to?

[IMG] [/IMG]



Posted : 10/12/2012 3:58 pm
Posts: 251
Full Member


113 is axle length.

I'd check with middlebrun re shell width - crank bros just use a spacer to differentiate between the two but I can see you'd end up with the axle off centre if you weren;t careful.



Posted : 10/12/2012 4:02 pm
Posts: 13594
Free Member


As it screws in till it's flush you'd have (113-68)/2 = 22.5mm of axle on one side but only 22.5 - (72-68) = 17.5 on the other...



Posted : 10/12/2012 4:04 pm
 JoeG
Posts: 0
Full Member


Can also be used on 73mm std BB shell

From the Gusset [url= http://www.gussetbikes.com/products-information.php?id=BBGUIS63 ] webpage[/url] leads me to believe that it will work for you.

The photo there shows the BB with a spacer on the drive side, which is the way that most cartridge BBs fit a 73 mm shell.

Edit - If you need a spacer, I'd bet that most shops have a bunch of extras lying around...



Posted : 10/12/2012 8:14 pm
