This morning my chain locked up whilst I was standing on the pedals, causing the wheel to be pulled out of the dropouts on my 456 (which I have singlespeeded)
Now the wheel touches the drive side chainstay. Turning the wheel the other way round it still touches the drive side chainstay.
I have looked and it seems that the whole rear triangle is now out of alignment (and checked with a second wheel).
Can this be fixed (if so how) or do I need to get a new frame?
Cheers
Paul
Pics.?
I bent the rear end of mine. Not the whole triangle but the mech hanger and drop-out. A big adjustable spanner did the job.
Sounds like you need an lbs with one of these
[url= http://www.parktool.com/repair/readhowto.asp?id=40 ]http://www.parktool.com/repair/readhowto.asp?id=40[/url]
bob jacksons in leeds would be able to sort it out for you

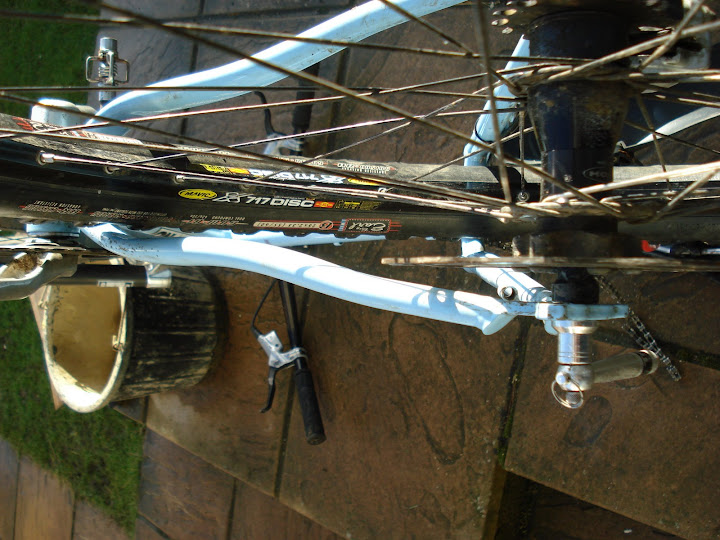

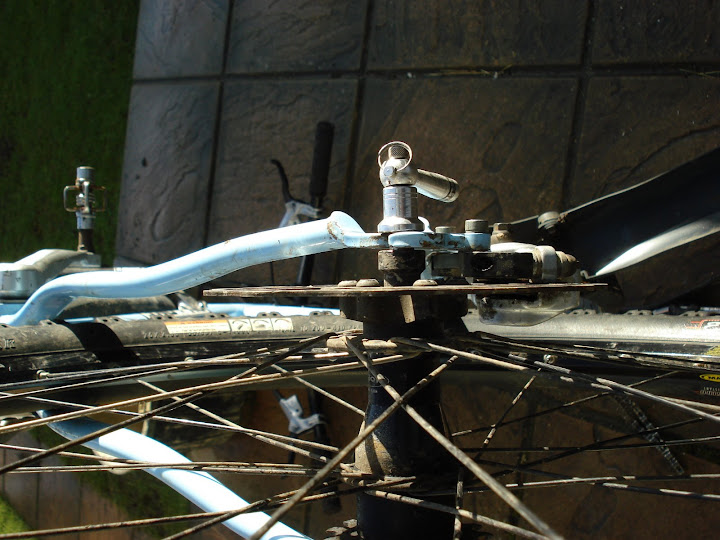

It looks like this
[img]
[/img]
[img]
[/img]
And with the wheel the other way round
[img]
[/img]
[img]
[/img]
Have you tried it with a different wheel? Maybe the wheel spindle is bent..
Yup I've heard bob jacksons is good, should be able to do it, if not any car place with laser chassis alignment might well have a good go. With inbreds being pretty cheap and all, I could see you spending nearly as much as a new frame, I'd be tempted to get a big scaffold bar and have a go myself..
Stand on it - it'll bend back. You can do it with steel no problem.
Exactly the same thing happened to my green 456. I chucked it and Brant sold me another for half price
It is definately the frame not the wheel.
The drop outs are square to one another, its just the whole lot is shifted. So i am not sure that Park Tool kit will work (it seems to say it really is for drop out misalignment.
Its not worth spending a lot of money as they aren't expensive
£15 to get mine bent back into shape... try recycle engineering in Leeds (if you're up this way) failing that any good bike shop will give it a go....
In other news... I'm about to SS my 456, how is it?
I like it a lot, with 32:16 I got a magic ratio with a half link in the chain. The frame is a bit heavy though for what I use it for
Check the frame with a bit of string before bending anything. Run the string through the dropouts and round the head tube, then measure from the string to the seat tube, if it's not the same on both side's the frame's bent. Simply bend (with a hub in the dropouts) until it's symmetrical.
Job's a goodun!
Wouldn't have happened with carbon.
i would have a bash at it myself.
a personal challenge/development (like learning to bleed brakes, and service forks, and next on the list, shocks)
probably the best frame to try it on, steel should be ok cold setting, and if you balls it up, is only 135quid for a new one (though not in baby blue i suppose?)
wheel in the dropouts, block of wood under the dropouts, and under the BB/seattube, and then stand on it..... gently 😀
I'll have a go at most things, but I still don't think it is going to be possible to get it to line up correctly.
Standing on it isn't going to work, as I will need to prevent the main triangle from moving.
Perhaps if I was to clamp the bottom bracket housing in my vice I could just bend the triangle back?
read up on cold setting at sheldons site. Easy to do with a bit of patience and a bit of string. YOu may want to drop it into the lbs to get the mech hanger aligned or dropout faces aligned if they are still out of whack
http://www.sheldonbrown.com/frame-spacing.html
Your wheel looks out of dish. Am always amazed that a frame can be bent in this way.
The wheel isn't perfect, but the wheel from my other bike that is perfect sits the same.
That sheldon page is great, I can now see how it is possible now and if I leave a hub in there.
Although I am a bit nervous about bending against the seat tube. I'll probably put a bit of rag on the tube and then some angle iron to spread the load.
I'm confuzzled.
It looks as if one of the chainstays has effectively lengthened or shortened, in order to make the wheel sit squint. It's not that the spacing has changed or that the rear triangle has twisted out of alingment with the front.
Or am I crazy?
Fixed it 😀
Used Sheldons method to gradually bend it back square, took a fair few goes to get it spot on either side of the seat tube and with a 135mm spacing (the spacing without a wheel fitted before was 142mm due to the damage)
Now can anyone recommend me a guide to truing my wheel as that is a bit out of shape
