[Closed] Seized bottom bracket in a Ti frame

7 Posts
6 Users
0 Reactions
84 Views
Posts: 13430
Full Member
Topic starter


Ok, I have the tool but cannot get the thing to shift. (this tool http://www.chainreactioncycles.com/park-tool-bottom-bracket-tool-bbt22/rp-prod17704?gs=1&utm_source=google&utm_term=&utm_campaign=Chain+Reaction-UK-PLA-PLA-All-DT-SE-Shopping+QLB+Generic+Desktop&utm_medium=base&utm_content=mkwid|sOWs0gz59_dc|pcrid|161850070953|pkw||pmt||prd|54958UK)

Part of the problem is trying to get the tool to stay in place when I turn it.

I have tried fitting a socket but not enough leverage to move anything.

I have clamped the tool onto a workbench, lowered the bike on to that and tried to turn the bike. Nothing budges but the bike keeps lifting off the tool before I can really force it.

I have played a blow torch over the frame and then lowered the bike but nothing budges.

Any bright ideas?



Posted : 14/06/2017 4:45 pm
Posts: 2081
Full Member


An impact wrench of the air or electric variety. Not as brutal as you may imagine and will probably have it out quickly without causing any damage. My LBS has an electric impact gun for exactly this. Where are you? I've got a selection of air driven ones.



Posted : 14/06/2017 4:50 pm
Posts: 15343
Full Member


Just to confirm, you are turning in the correct direction right?

BB cups are L/R hand threaded...



Posted : 14/06/2017 4:55 pm
Posts: 0
Free Member


Part of the problem is trying to get the tool to stay in place when I turn it.

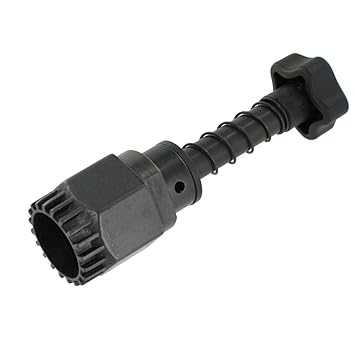

Is it square taper? If so I may be able to assist: I have a VAR tool like this, and the spring holds the tool in place:

[img] [/img]

If it's Octalink or ISIS, I think the [url= https://www.bikeinn.com/bike/var-bottom-bracket-tool-for-shimano-octalin/136086940/p ]latest version[/url] will fit:

[img] [/img]



Posted : 14/06/2017 5:27 pm
Posts: 13430
Full Member
Topic starter


Bolting the tool to the bottom bracket - much like shown above - as recommended by Paul Davies kept it in place well enough for me to clamp it and use the frame for leverage.

I now have a new smooth BB in place.

Thanks All



Posted : 14/06/2017 5:47 pm
Posts: 5025
Full Member


For the record, I struggled to get a shimano BB out, even snapped a big Allen key in the process.
What seemed to work was plusgas around the interface, but also knocking out the bearing first.
This gave the softer alloy shell a bit of room to move I think.



Posted : 14/06/2017 6:38 pm
Posts: 25882
Full Member


did you put plenty of copperslip on this one ?



Posted : 14/06/2017 7:24 pm
Posts: 13430
Full Member
Topic starter


Lots of Copperslip applied and the first ride confirmed everything is silent once more



Posted : 15/06/2017 11:58 am
