Hey, you! Got a Shimano road mech? Got a tape measure?

tomhoward

Posts: 20945

Topic starter

If you can answer ‘Yes’ to the above, then you could be my saviour!

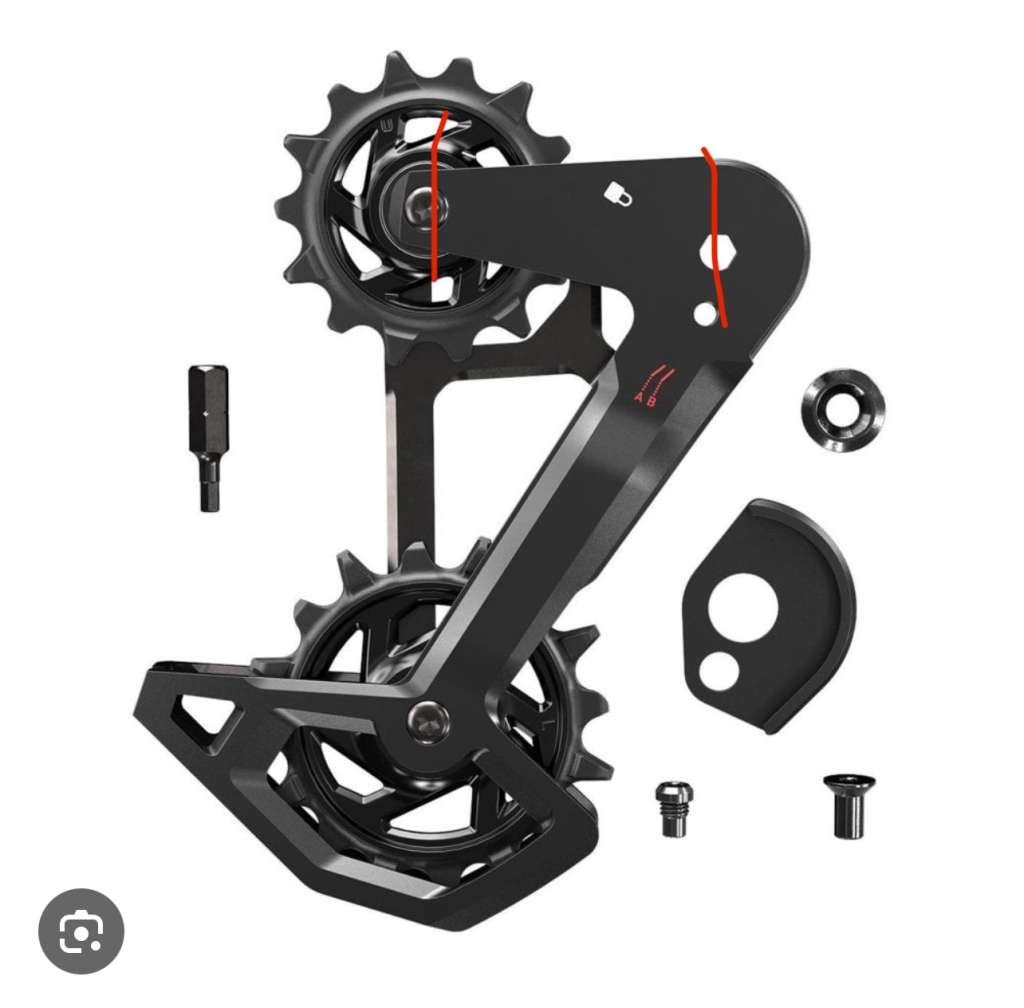

I’ll tone down the drama now… a little project I have on the go involves converting a GX AXS mech to work seamlessly with a 11-30 road cassette. I figure as the cage is designed to work with a 10-52 cassette, its dimensions could be reduced, but I’m wondering by how much.

So how can you help? If you have the above mech and measurer, could you let me know the distance between the jockey wheel axles, and how far the top one is from where it pivots at (bolts to) the mech body, if you see what I mean, I would be eternally grateful!

Posted : 22/01/2025 10:36 am

temudgin

Posts: 439

Full Member

RD-5800
Not entirely sure I’ve understood the second measurement you were after

Posted : 22/01/2025 11:19 am

tomhoward and tomhoward reacted

nixie

Posts: 8181

Full Member

105 r7000 GS cage 87/88mm between jockey wheel axles (this info is often on sjs's web site or Shimano tech docs. Not sure which other measurement you mean. The top jockey wheel is inline with the bolt that holds the cage to the mech body (B knuckle?). Perhaps a picture with annotation would clear it up.

Would it not be easier to use a axs road mech?

Posted : 22/01/2025 11:22 am

tomhoward and tomhoward reacted

nixie

Posts: 8181

Full Member

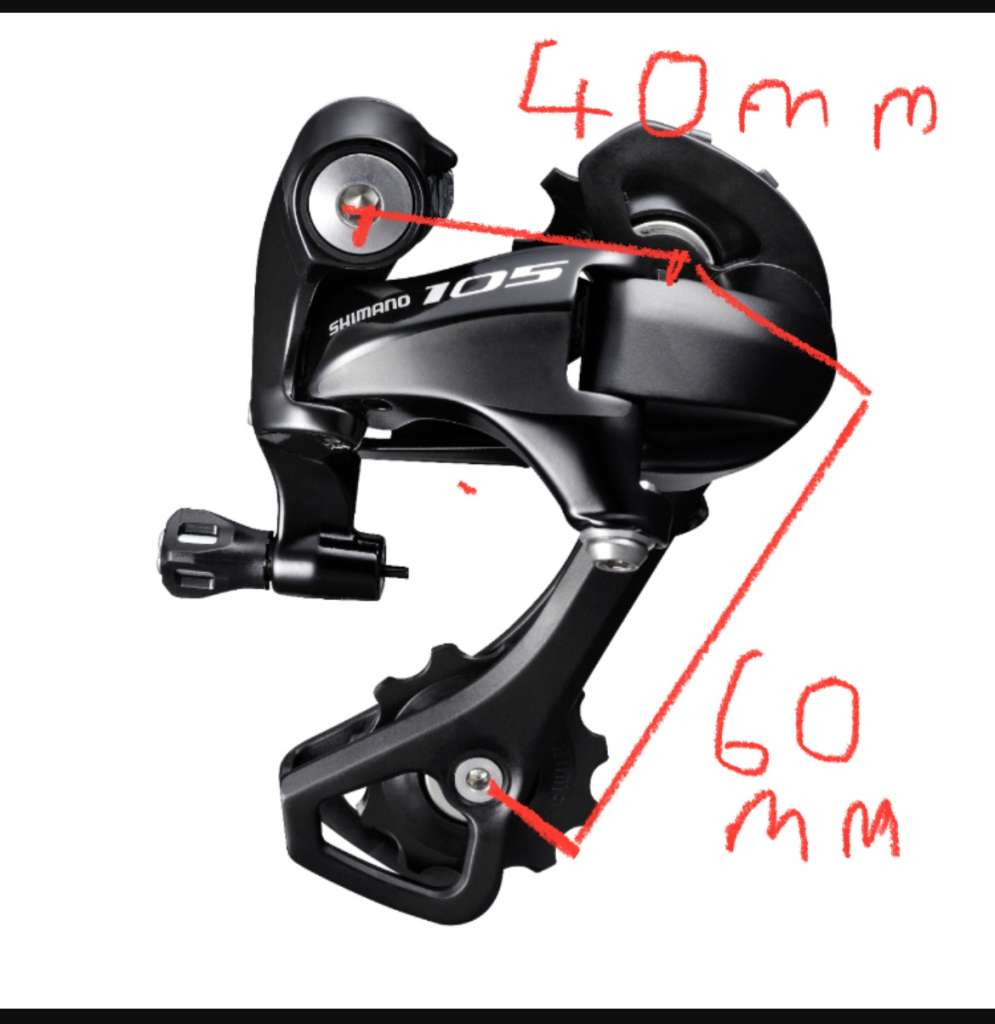

The 40mm in the above picture varies depending on mounting and mechs current extension.

Posted : 22/01/2025 11:24 am

tomhoward and tomhoward reacted

tomhoward

Posts: 20945

Topic starter

Thanks all!

Sorry, where the cage bolts to mech body, and the top wheel.

Posted : 22/01/2025 11:38 am

tomhoward

Posts: 20945

Topic starter

Would it not be easier to use a axs road mech?

Not really, as they dont have the mechanism that moves it out the way if/when it gets thunked off rocks.

i would use a GX/X01 DH cage, but thats a bit small, and needs to be modified to fit anyway, plus are silly money.

Posted : 22/01/2025 11:43 am

nedrapier

Posts: 12522

Full Member

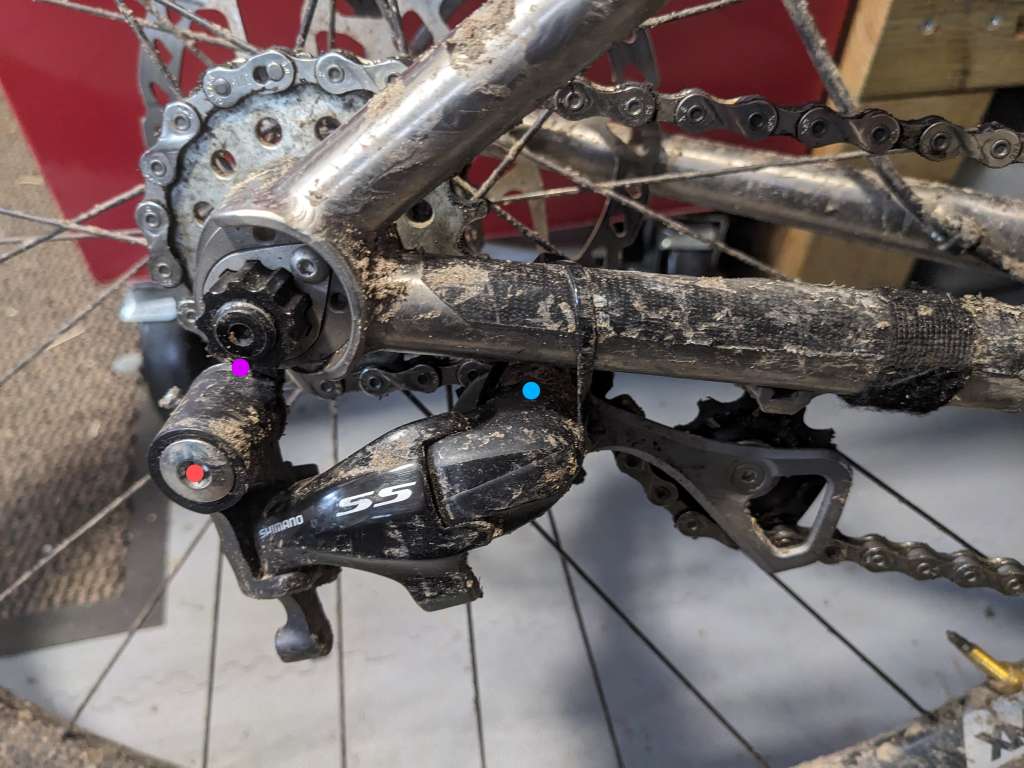

But that's the bit that's not in a fixed position, it moves with the parallelogram. And if presume that you'd want purple to blue not red to blue? My cage (jockey to jockey) is 60mm too PXL_20250122_103535072~2

Posted : 22/01/2025 11:48 am

tomhoward and tomhoward reacted

nedrapier

Posts: 12522

Full Member

Sorry, where the cage bolts to mech body, and the top wheel.

This is 0mm, really as it bolts to the mech body at the same point.

Palms up shrugging emoji. Question mark.

Posted : 22/01/2025 11:52 am

tomhoward and tomhoward reacted

tomhoward

Posts: 20945

Topic starter

Makes sense. Not used Shimano kit for a while, good to know!

Thanks again!

Posted : 22/01/2025 12:08 pm

boblo

Posts: 7838

Free Member

This is 0mm, really as it bolts to the mech body at the same point.

Aye it's inline on Shim (road at least). There's no step as per OP's example pic.

Posted : 22/01/2025 12:40 pm
