I’m an award winning professional frame builder, having a bit of a workshop clearout. My work can be seen here: www.clandestine.cc

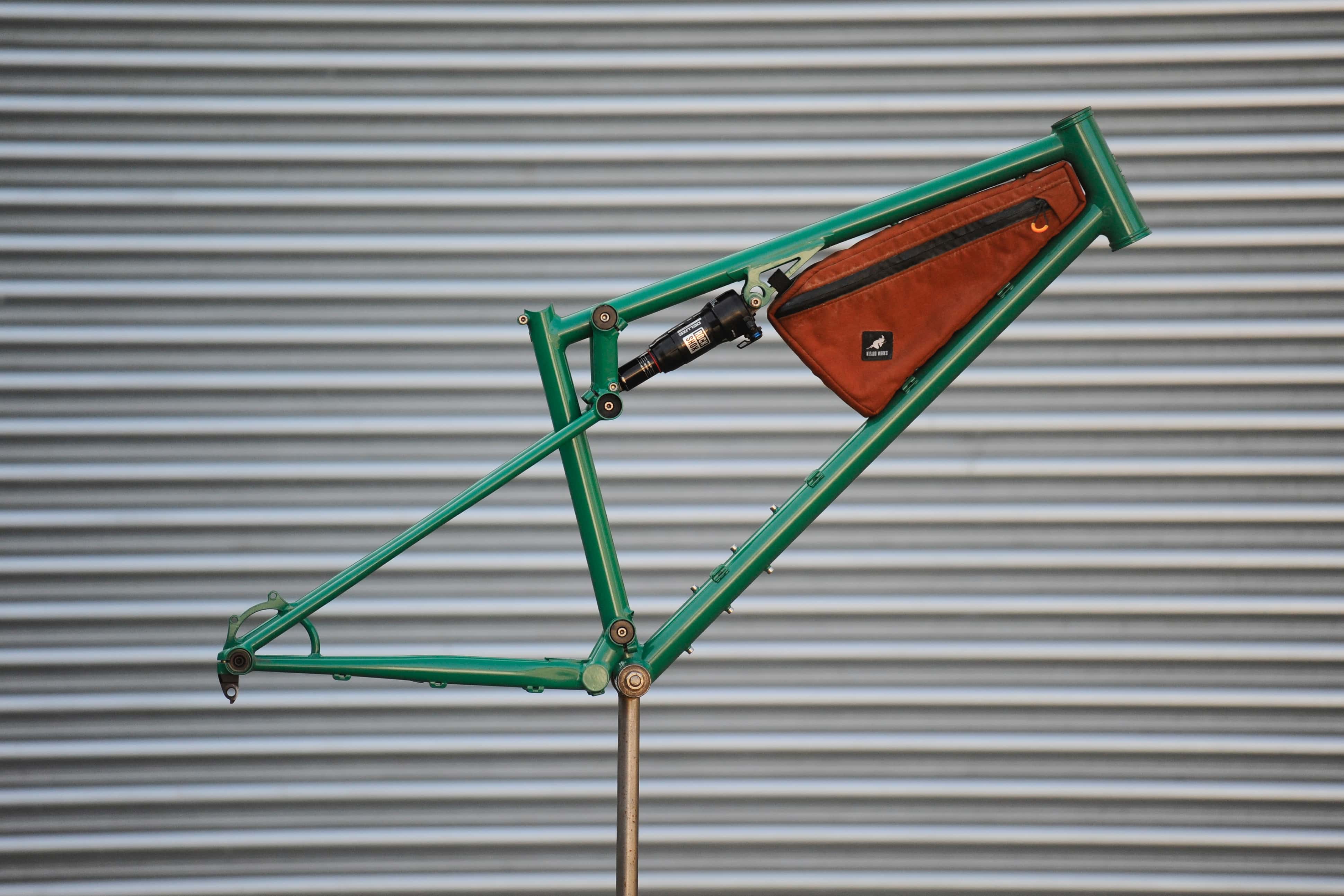

I made this frameset in 2022. It’s fillet brazed and made with Reynolds 853, with an 853 linkage. I’ve attached a geometry drawing.
The specs are:
27.5 x 2.6″ max

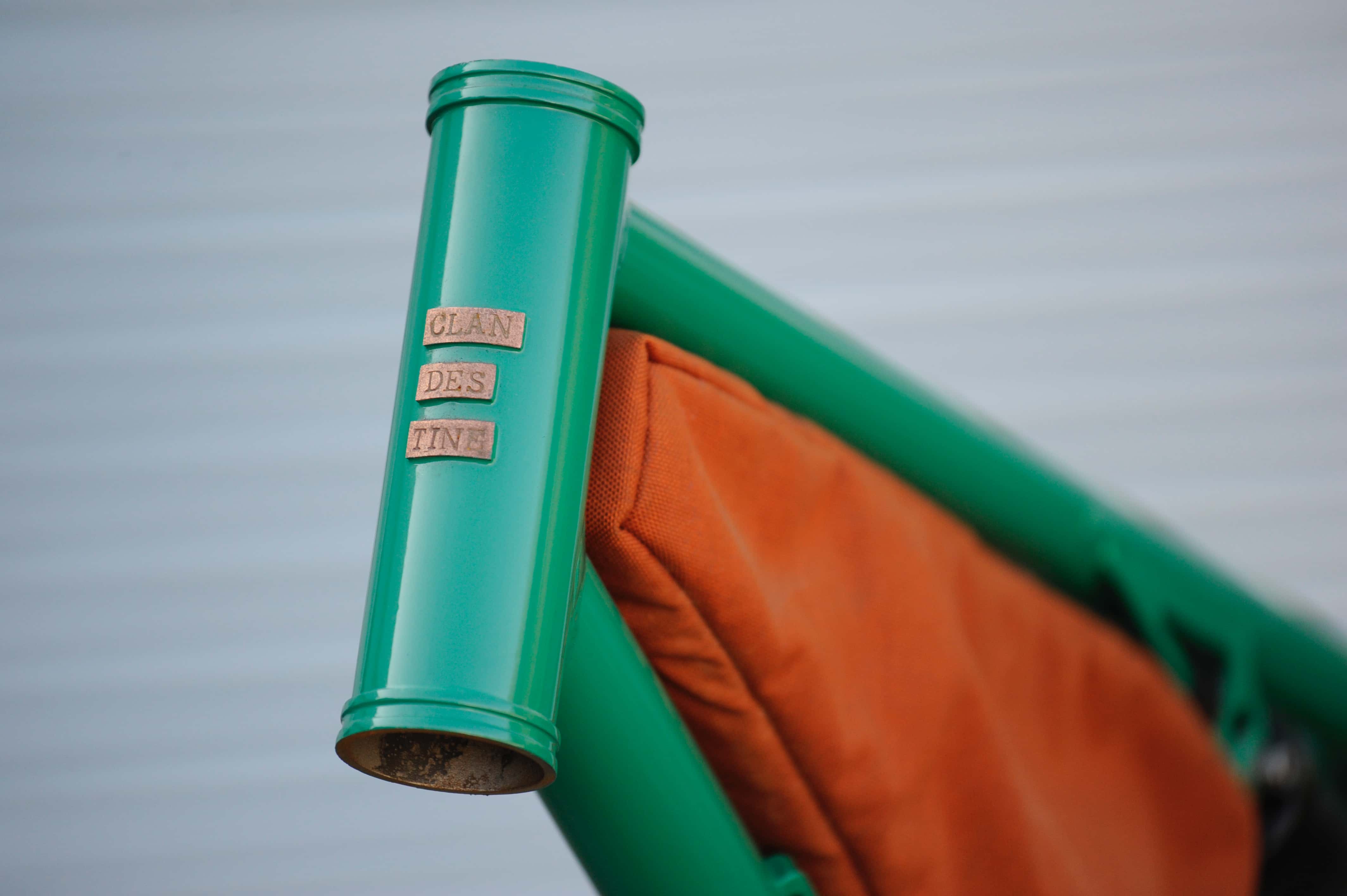

44mm headtube
31.6mm seatpost, with internal dropper routing and brazed on
110mm rear travel, designed around 140-150mm fork

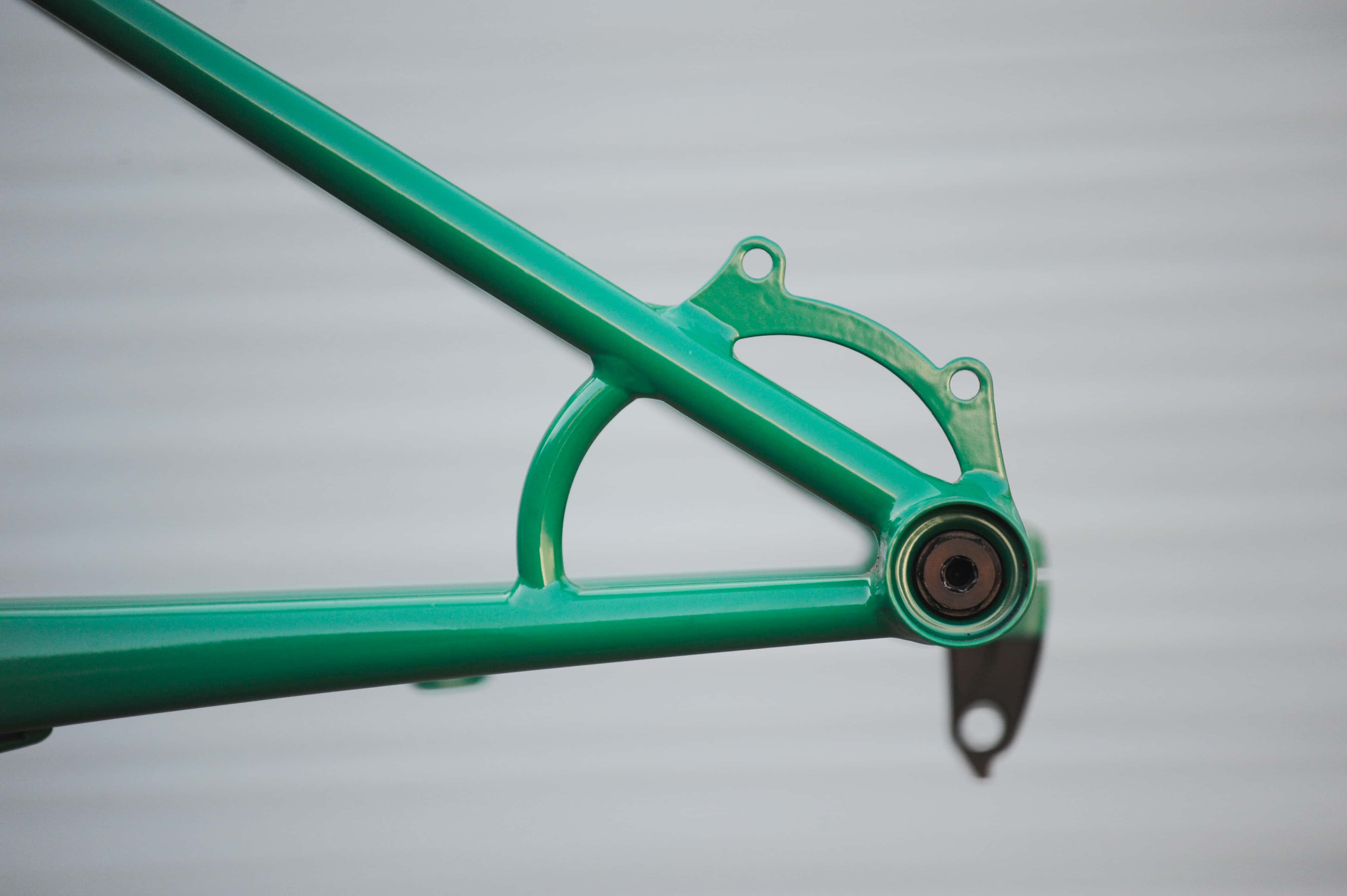

12 x 148mm Boost rear end, with standard, commonly available Syntace X12 mech hangers.
Zip tie cable guides.

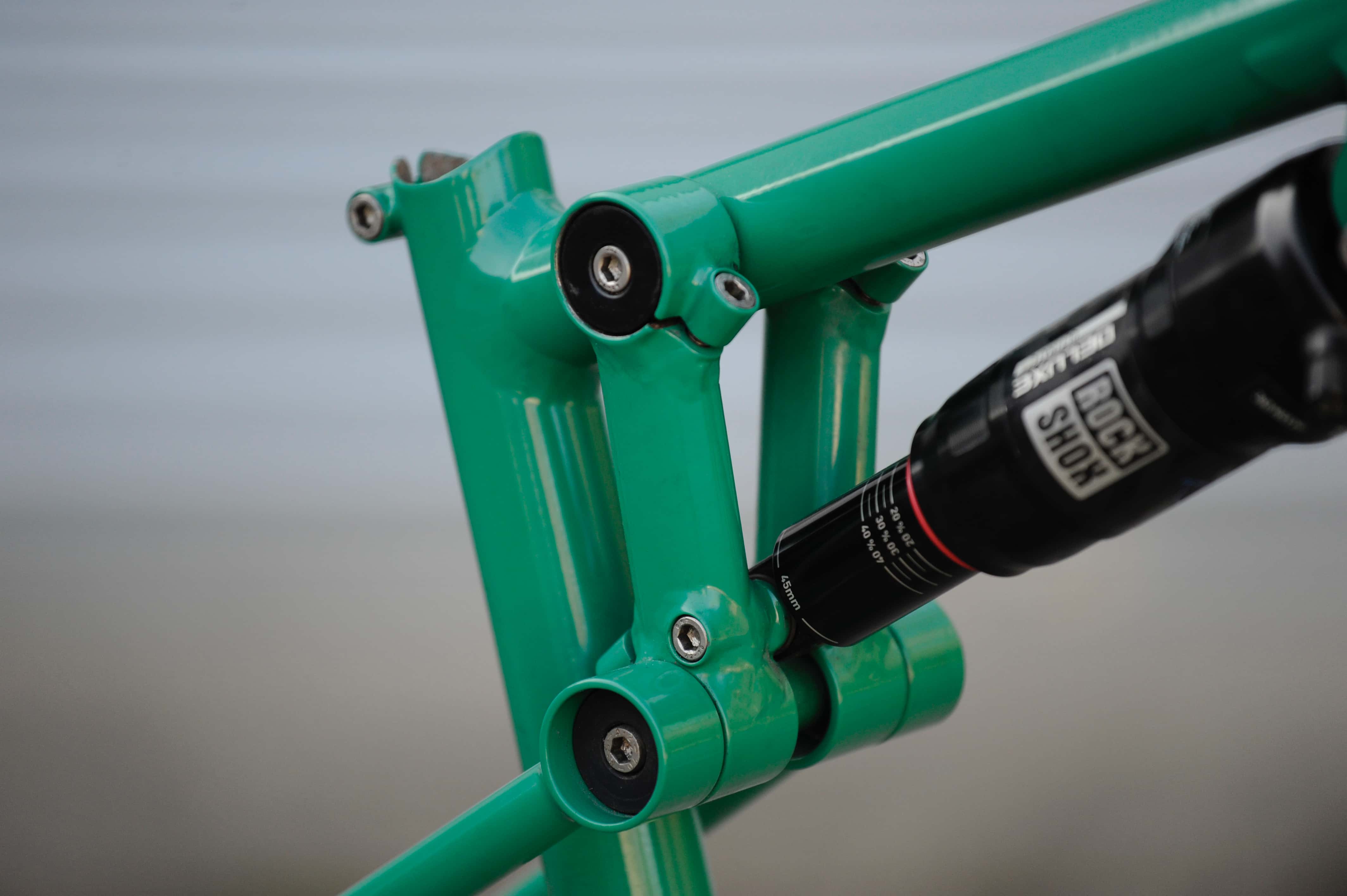

Includes Rock Shot Deluxe shock, bolt on custom Wizard Works frame bag and a custom stem.

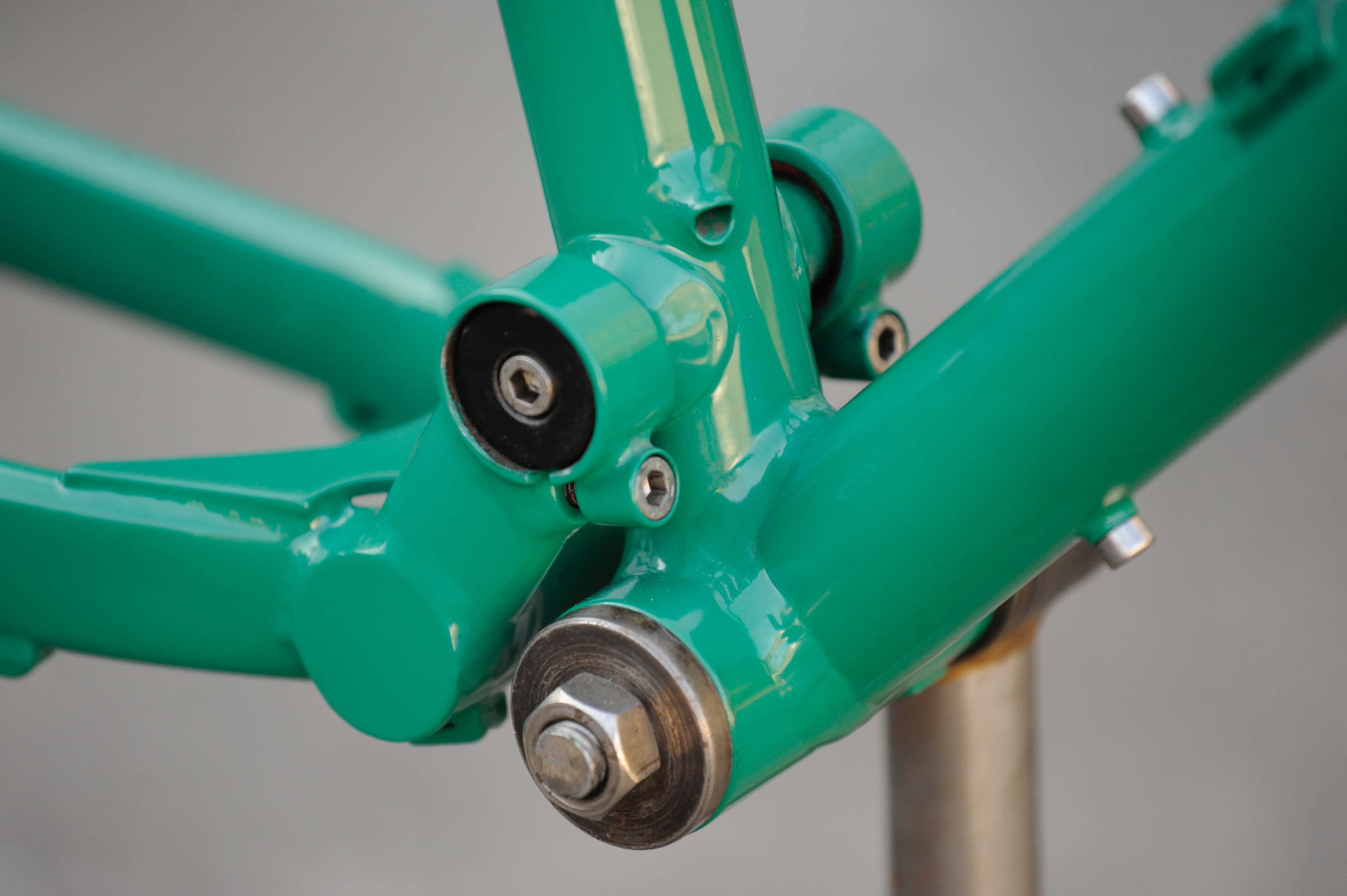

The bearings are standard sized Enduro bearings (all brand new) and can be changed with nothing but a pair of 5mm allen keys. The frameset has had a brand new powdercoat, though the stem hasn’t and has a few chips as can be seen.
I’m happy for you to come to my workshop to see it or collect, and I’m happy to post also.
