Brake piston spread...


Brake piston spreaders

66 Posts
39 Users
51 Reactions
332 Views
Free Member
Topic starter


Looking for some suggestions. Actual piston spreaders rather than the flat lever type. Birzman seem to get mixed reviews. Cough up for the Sram one? There are some cheaper identical looking knockoffs on amazon.

I see Unior make one but not sure if that's more for motorbikes?

I'm sure I saw an ad for little expanding wedge bleed block size ones somewhere...


Posted : 09/12/2024 12:56 am
Full Member


Have a look for a co. Called sumart


Posted : 09/12/2024 6:48 am
Full Member


I have one called “Ultimate piston press tool”  (very generic name!) from Amazon. There seem to be many that do roughly the same thing (sliding wedges with parallel expanding faces) on Amazon.

It does make a job I dislike into a moment of workshop bliss.


Posted : 09/12/2024 7:54 am
Free Member


too push for just jamming a couple of flat head screw drivers and wiggling them about with wild abandon? Well la di da


Posted : 09/12/2024 8:56 am
LAT, kimbers, doomanic and 5 people reacted
Free Member


I have the Birzman Double ended piston pusher, as I couldn't face the cost of the SRAM tool. I was initallly disappointed, as the plates don't push parrallel, once you start to press against the pistons. What I did find was using a large flat bladed screw driver, you can help the end that pushing in, and the tool works fine. Would I recommend it, over jamming two flate head screw drivers in, defnitely as you'll struggle to damaged the pistons with this tool.

If I was buying again now, I'd be tempted by that Sumart tool or a clone of the sram tool TBH


Posted : 09/12/2024 9:17 am
alpin reacted
Free Member


Flat headed screwdrivers and some old pads to protect the pistons.


Posted : 09/12/2024 9:37 am
Full Member


I love a tool but I've found a tyre lever works really well to open them up and haven't had the need to get one

Tool needed on a bigger caliper/system though (e.g. a car)


Posted : 09/12/2024 9:38 am
zerocool and Rustychain reacted
Full Member


I've an old Stanley flat headed screwdriver that was abused and the head rounded so I filed it smooth. Works a treat.


Posted : 09/12/2024 9:45 am

Full Member


It’s definitely the “luxury tool” end of tools since I have used the old pads/screwdriver for years. Which works, until the moment the screwdriver slips and the pistons aren’t parallel. Then it’s a pita!

very much nice to have but not essential in the tool box


Posted : 09/12/2024 10:42 am
Full Member


Occasionally using a tyre lever/screw driver etc can cause the pistons to become crooked and then they will never retract all the way. I had this issue and when I took to LBS to rectify the fact that I could not get the rotor in past the newly installed pads they got the SRAM tool out and went “oh yeah, common issue. This will fix it.” And sure enough it did. I then went and bought the SRAM tool and it makes fitting new pads, pad gap reset, pad advancement process a very simple job. Some SRAM group set components come with a plastic version of the tool that does a similar job but you can’t screw it in so less useful for mis aligned pistons I suspect….


Posted : 09/12/2024 11:14 am
Full Member


Careful you don't blow the bladder if it's on Shimanos and you've topped up the fluid since the pads were new though.


Posted : 09/12/2024 11:53 am
Free Member


Has anyone got a link to the clone ones please of sram? I too want one of these as I’m forever chipping my calipers with screwdrivers etc would like a nice tool that does the job quickly and mark free- however the sram one is just not justifiable at all at that price but wouldn’t mind a cloned version or a cheaper branded one that does as good a job


Posted : 09/12/2024 11:53 am
Fozlett reacted
Full Member


I have a specific Massive ****-Off Screwdriver, it'll never be used to do up a screw but with old pads in it's an absolutely perfect piston spreader, the taper is just unimprovable. I'm all for a "proper tool" but in this case ime this works as well as the SRAM tool but faster and cost me like £3, so by keeping it in the bike tool rack it became The Proper Tool.


Posted : 09/12/2024 6:07 pm
nickingsley reacted
Free Member
Topic starter


https://amzn.eu/d/9M7HPNF

Will probably get one of those. There are a few similar knockoffs. The Sumart looks good, but not sure where to actually buy one here.

A largely unnecessary tool, but it'll come in handy sooner or later. While using a Park Piston Press a few years ago I did manage to snap the pad bolt tab clean off a caliper. One of those "Did I really just do that!" moments. Peak ham fisted dumbass stuff.


Posted : 09/12/2024 6:20 pm
Full Member


I’ve the SRAM tool. Only used a couple of times, really had to crank it to get the pistons back in. Makes you realise that using anything else would have been bordering on the impossible. Also reduces risk of scratching the calipers etc.


Posted : 09/12/2024 7:06 pm
stanley and z1ppy reacted
Full Member


The Park one has a tendency to mark/put a ding in the calliper. Hateful thing.


Posted : 09/12/2024 7:09 pm

Full Member


Are the SRAM ones or their clones wide enough to do 4 pot calipers? Problem with them is that as you push back one pair, the pressure squirts the others put so need to be done all at the same time preferably.


Posted : 09/12/2024 7:13 pm
Full Member


I think the Park Tool press is meant to be inserted between the pads to push the pistons back, not contact the caliper body or pistons directly?


Posted : 09/12/2024 7:17 pm
kelvin and Fat-boy-fat reacted
Free Member


Is this the SRAM one people are talking about?

If so, seems like an interesting solution to their design fault (i.e. sticky pistons that easily misalign).

I have one of these - https://uniortools.com/eng/product/1750-2DP-US-disc-brake-piston-spreader - which surprisingly doesn't work that well with my SRAM G2 brakes *sarcasm*. Guess I'll need one of those expensive official ones.


Posted : 09/12/2024 7:19 pm
Full Member


Yes, i’ve used it on Codes. Contacts both pistons on each side maybe 60% of the surface area. Has a hole in it to hold in place using the pad retaining pin


Posted : 09/12/2024 7:32 pm
jpacey reacted
Full Member


Yep, that’s the SRAM one. That Unior is similar to the Park one which I don’t like.

I tried the Park one with the pads still in and it’s even worse as it doesn’t push the callipers back evenly and also chips the pad material,  so if it’s supposed to be used that way it’s not great at all.


Posted : 09/12/2024 7:32 pm
Free Member


Yep, the Unior and Park ones are supposed to be used with the old pads still in as they are made of steel and will damage pistons.

The issue I have with them is that they don't seem to work so well with SRAM 4-pot brakes because they don't evenly push the pistons back in. Works perfectly with our bikes that have older Shimano 2-pot brakes.


Posted : 10/12/2024 9:04 am
Free Member


I didn’t know the SRAM tool existed until I read this thread. Looks great in the video but a bit pricy. I’ve ordered an Ali express version for £20. Looks the same hopefully it will do the job well. Must be better than the screwdriver I currently use.


Posted : 10/12/2024 9:25 am
TexWade reacted
Free Member


The double wedge system looks like a sensible approach to me, at least over the lever types...

Personally, I now use a C-clamp to *pull* the pistons back in individually. This (a) seems more positive, and (b) allows me to restrain one piston while 'working' the other back and forth to unstick things.


Posted : 10/12/2024 9:28 am

Full Member


I don't see how the sram one or its copies would work with 4 pot brakes - which are the most difficult to deal with.  And it doesn't actually put pressure on the pistons parallel, which would seem to be what you'd want.

I've got a couple of the lever tools - a park one and something cheap I used to make up an order for free postage.  they're best used with pads in and you have to be careful what you're levering against.

Best results I've had - as others have said, is using an old set of pads and a big screwdriver.  Especially if you twist the screwdriver rather than levering it.  the only tool above that seems to attempt to do the same is the birzmann and Zippy says you have to use screwdriver with that anyway.


Posted : 10/12/2024 9:31 am
Full Member


Careful you don’t blow the bladder if it’s on Shimanos and you’ve topped up the fluid since the pads were new though.

I only learnt about this recently.

Idiot destructor of Shimano levers.


Posted : 10/12/2024 9:32 am
Speeder reacted
Full Member


I’ve got a couple of the lever tools – a park one and something cheap I used to make up an order for free postage.  they’re best used with pads in and you have to be careful what you’re levering against.

I use the Park lever tool… with old pads in… but don’t take my advice (see above).


Posted : 10/12/2024 9:40 am
alpin reacted
Full Member


After years of using screwdrivers, tyre levers and the "not great" Park tool, I've just ordered this Sram tool. Ordered from BikeInn for a reasonable saving; I don't really like using them but better than supporting knock-off stuff imo.

I've always managed fine without the proper tool, but I've rarely regretted buying decent quality, niche tools. So long as it covers more than half of each piston, then it should be fine with 4-piston calipers. We have pretty much the whole Sram range in our house so it'll soon get tested. I'll report back!


Posted : 10/12/2024 2:32 pm
nickingsley and leffeboy reacted
Free Member


Do you not pay customs on the bikeinn site to the uk? I’m tempted treat myself too for xmas as it’s a tool I use a lot as I’m forever removing installing both wheels so inevitably everything goes out of whack over a few weeks and give them a good lining up again


Posted : 10/12/2024 2:44 pm
Full Member


I ordered mine from swinnerton today for £77


Posted : 10/12/2024 2:54 pm
Full Member


No additional vat or customs on the BikeInn site... think they use a distribution warehouse in the UK. Delivery sometimes takes longer than predicted though. Used them several times without issues.

Whenever changing pads I like to pump the pistons out a bit, clean and lube the pistons, then squeeze them back in. Sometimes do it between pad changes as it keeps the braking performance good. Hoping it'll make the process more satisfying 🙂


Posted : 10/12/2024 3:01 pm
Full Member


Leftfield option, one of them little air wedge thingies. I have never used one on a bike or otherwise so maybe talking total ....


Posted : 10/12/2024 3:13 pm

Free Member


We have three of these Tyre Levers and they're perfect for the job and don't chip anything. Can't imagine spending anything more than that for the job and that's coming from me who loves having random tools for a job I only do once!


Posted : 10/12/2024 3:58 pm
kimbers reacted
Full Member


The sumart universal bleed block/piston spreader is £39.99 from this dude but not in the country yet

Screenshot_20241210-172935


Posted : 10/12/2024 5:31 pm
gingerman69 reacted
Full Member

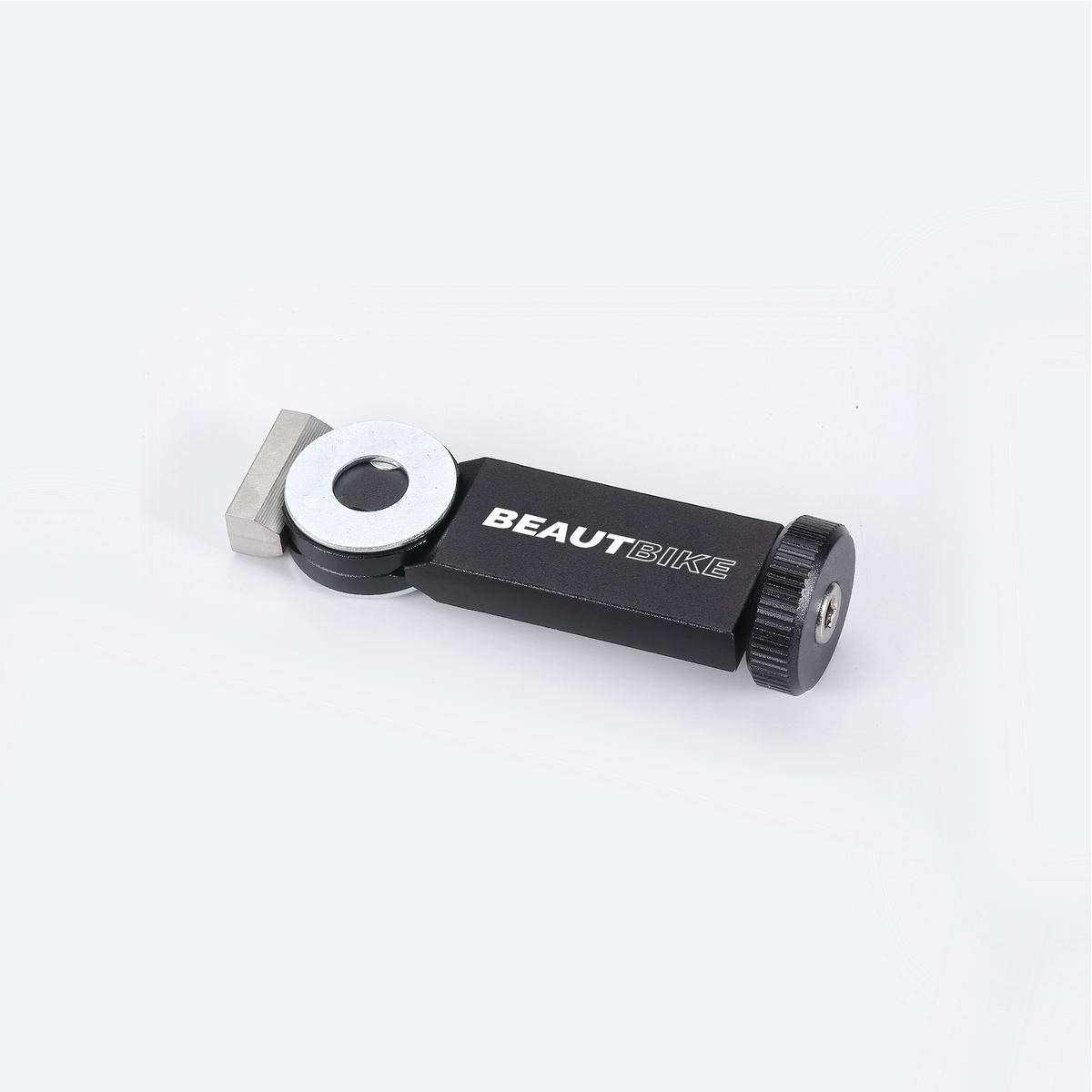

Dave Rome was very positive about these on the Geek Warning podcast recently.

https://www.beautbike.com.au/products/mini-bicycle-disc-brake-piston-press

He says he's going to do a proper review of them soon but basically said they're more versatile than the SRAM ones and don't fall apart like the imitation SRAM ones.

I don't think they ship to the UK yet but hopefully it's a matter of time.


Posted : 10/12/2024 9:22 pm
roger_mellie reacted
Full Member


clean and lube the pistons,

SRAM specifically say not to lube the pistons as it actually prevents them retracting properly rather than helping.

It also enables dirt to get past the seal and causes damage to the seal.


Posted : 10/12/2024 9:59 pm
Full Member


That looks to be the Sumart one rebranded. Out of stock currently.

Worth noting that you need two for 4-pots and even then they may not fit (eg Magura).

My standard issue table knife/tyre lever/screwdriver/whatever's to hand will continue to be used I think.


Posted : 10/12/2024 10:03 pm
Full Member


Use a worn down set of pads and an old piston retraction tool. Think it cost me £5 back in 2010.

Never let me down and not damaged any pistons yet.

A bit like this but it's wider for 4 pots

https://www.ebay.co.uk/itm/305761481528?mkcid=16&mkevt=1&mkrid=711-127632-2357-0&ssspo=hv5brc2stgc&sssrc=4429486&ssuid=eMMoTPPlT7y&var=&widget_ver=artemis&media=COPY


Posted : 10/12/2024 10:14 pm
 cord
Free Member
Full Member


I 3d printed a pair of wedges; slide them against each other. Worked well, about 50p of filament. Found a few patterns for different caliper widths. (I was using with Shimano calipers).


Posted : 10/12/2024 10:30 pm

Free Member


@cord thanks, I'll try those for £5. Cheers


Posted : 11/12/2024 10:45 pm
Full Member


SRAM specifically say not to lube the pistons as it actually prevents them retracting properly rather than helping.

It also enables dirt to get past the seal and causes damage to the seal

I've never heard that before. Drop of brake fluid worked in and wiped off has always kept mine working lovely. Totally standard practice ime. Never had a seal fail or piston stick.


Posted : 12/12/2024 6:04 am
Full Member


I’ve never heard that before

Says it in the manual innit..

IMG_3092


Posted : 12/12/2024 7:54 pm
Free Member
Topic starter


I've ordered a Sumart from The Cornish Bike Mechanic. Quite possible that is what I'd seen an ad for as mentioned in my first post.

As b33k34 posted I can't help but think the Sram type could put uneven pressure on at least one piston side.


Posted : 13/12/2024 9:17 pm
Full Member


SRAM specifically say not to lube the pistons as it actually prevents them retracting properly rather than helping.

It also enables dirt to get past the seal and causes damage to the seal

So, it doesn't "really" say that. They probably don't want numpties getting oil or grease on the rotor or pad. Or leaving a sticky mess that dirt will stick to.  Or using the wrong lube and knackering the seals, etc, etc.     Same debate regarding forks: if you know what you are doing, then go for it. If not, then leave alone 🙂


Posted : 14/12/2024 6:08 am
kelvin reacted
Full Member


So, it doesn’t “really” say that.

Eh? It quite literally says in a highlighted section “Do not apply DOT brake fluid or grease to caliper pistons”.  Clarified further by saying it may cause rotor rub. It repeats this elsewhere in the manual and a SRAM video I’ve seen explains that the piston isn’t supposed to move in and out past the seal during braking but rather the seal itself flexes in order to draw the caliper away from the rotor.

This is a technical manual not ham fisted amateur guidance so I very much doubt they say that just to prevent overspill.

Anyway, you do what you think is best obv. I’ll follow the manual.


Posted : 14/12/2024 7:10 am
J-R and cerrado-tu-ruido reacted
Full Member


@oceanskipper you are 100% right


Posted : 14/12/2024 7:26 am
oceanskipper reacted
Full Member


The Sumart one is in this week's Fresh Goods Friday which links to a UK seller, which looks like it's a website of the Cornish Bike Mechanic.




Posted : 14/12/2024 9:40 am

Full Member


I went right through to checkout with one of those Sumart tools (clicking the link for STW goodness) but then pulled out as it’s a lot of money (for me), if I was still working as a bike mechanic I would buy one, however, now I’ve got time to work more slowly and only on my own bikes I’ll stick with the Shimano tool I have. I’m not saying that I will never buy one, it’s a desirable tool in my “cheer myself up” wish list!


Posted : 14/12/2024 10:23 am
Free Member


The Sumart one is in this week’s Fresh Goods Friday which links to a UK seller, which looks like it’s a website of the Cornish Bike Mechanic

It says its designed specifically for 2 piston calipers so will be of limited use for most brakes these days


Posted : 14/12/2024 10:29 am
Free Member
Topic starter


Wouldn't you just push back two at a time?


Posted : 14/12/2024 11:13 am
roger_mellie reacted
