Speed Date: Race Face Turbine Cinch 1x crankset

by 0

Riding through fields of joy
Riding through fields of joy

By foregoing the traditional four-bolt chainring interface in favour of a direct-mount model, Race Face’s Cinch line of cranksets allows for a marked increased in versatility and (in the case of 1x models) a decrease in weight.  The increasingly-common 30mm aluminium spindle can be removed from one or both arms, making a swap to downhill or fatbike widths feasible while double or triple spiders can be swapped in place of the single should the whole one-ring thing prove to be a fad.

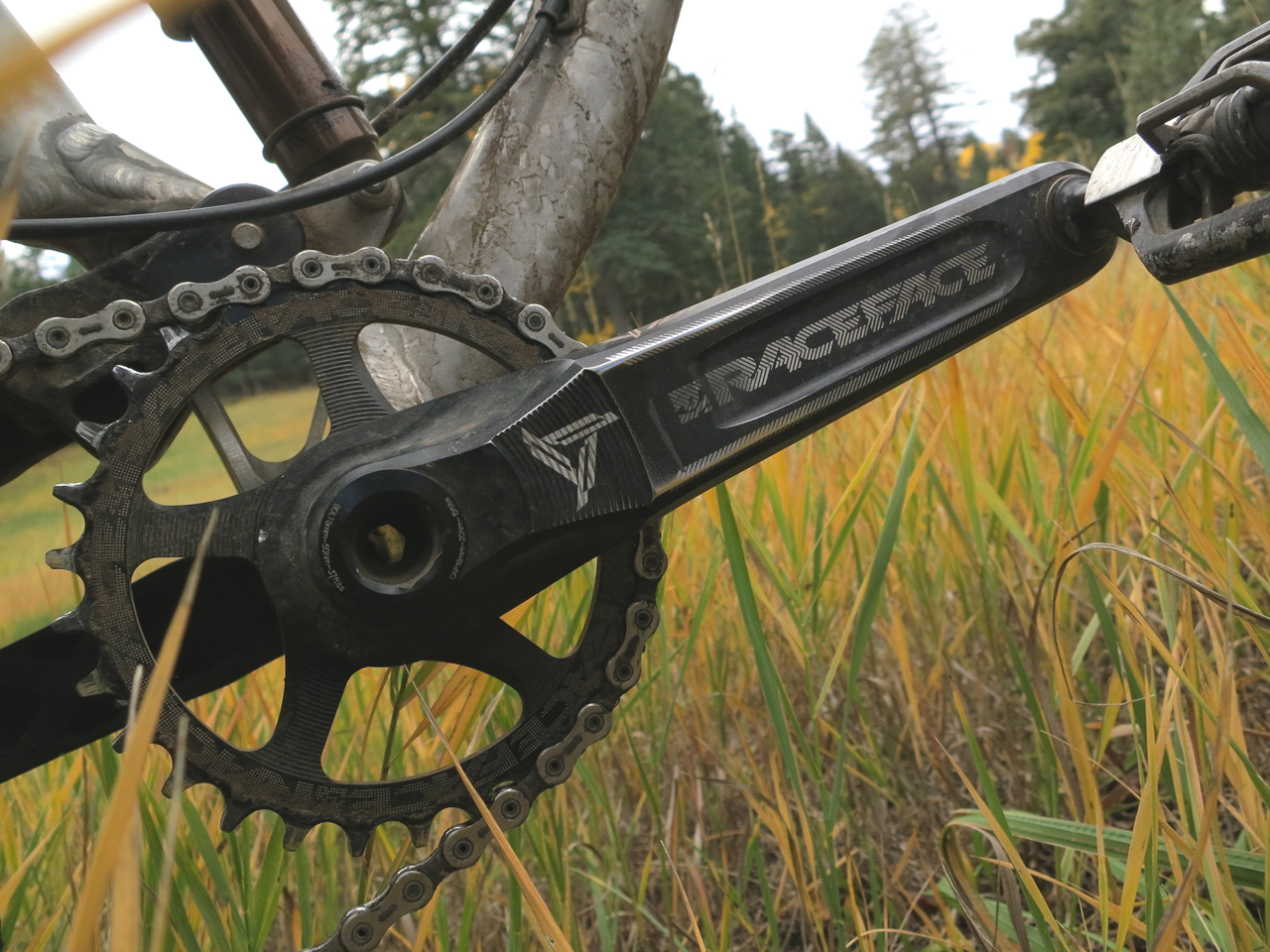

The quiet competence of the narrow-wide 'ring.
The quiet competence of the narrow-wide ‘ring.

Our 175mm, 30t sample came in at 617g- a mere 55g (10%) heavier than the new Shimano XTR single and right in the neighborhood of SRAM’s carbon X01 single-ring model.  The dedicated bottom bracket weighed 89g- just on the light side of average.  Packed with Phil Wood grease, that BB is larger on the outside than those designed for 24mm spindles.  While this change requires a dedicated tool, the payoff comes in terms of bigger balls and (one hopes) improved service life.  The single ring mounts to the back of the self-extracting right crankarm using the existing Octalink/ISIS bottom bracket spline.

When first installed our sample bottom bracket was horribly stiff, with drag so severe it was noticeable through the pedals.  A quick chat with RaceFace suggested that this is by design: initially tight seals take a few rides to bed in and to begin spinning freely.  Sure enough, after a couple of hours’ pedaling the bottom bracket was as free-running as any non-ceramic external we’ve felt, and has stayed that way for four (largely dry) months.

Deep pockets aren't pretty- but stay largely out of sight.
Deep pockets aren’t pretty- but stay largely out of sight.

Race Face’s narrow/wide chainrings run smoothly and have yet to drop the chain, so no complaints there.  An early squeak was traced to a loose chainring lockring – once corrected, the issue hasn’t returned. (A double-check during installation wouldn’t go amiss.)  Unlike other brands, RaceFace chose a right-hand thread for their self-extracting cap- which can loosen when removing cranks.  Once tightened and Loctited, this has stayed in place as well.

The arms themselves have worn well.  Unlike with carbon, rock strikes hardly merit a second thought and the laser etched pattern on their face serves to keep heel-worn arms from looking prematurely tired.  Stiffness has been just fine, neither noticeably stiff nor flexible.  With the loose hardware addressed, the Turbines have all but disappeared- spinning more smoothly and holding the chain every bit as well as anything else we’ve tried.

Overall:  The Turbine Cinch could well be the Shimano SLX of single-ring cranks:  Durable, functional, reasonably priced, and reasonably light.  Near-universal compatibility is an added bonus.  Just be sure to Loctite and properly torque all hardware on installation.

Review Info

Brand: Race Face
Product: Turbine Cinch
From: Silverfish UK
Price: £170 + £55 + £40 = £265
Tested: by Marc B for Four Months
