Name this nut


Name this nut

Posts: 6949
Full Member
Topic starter

[#13529112]

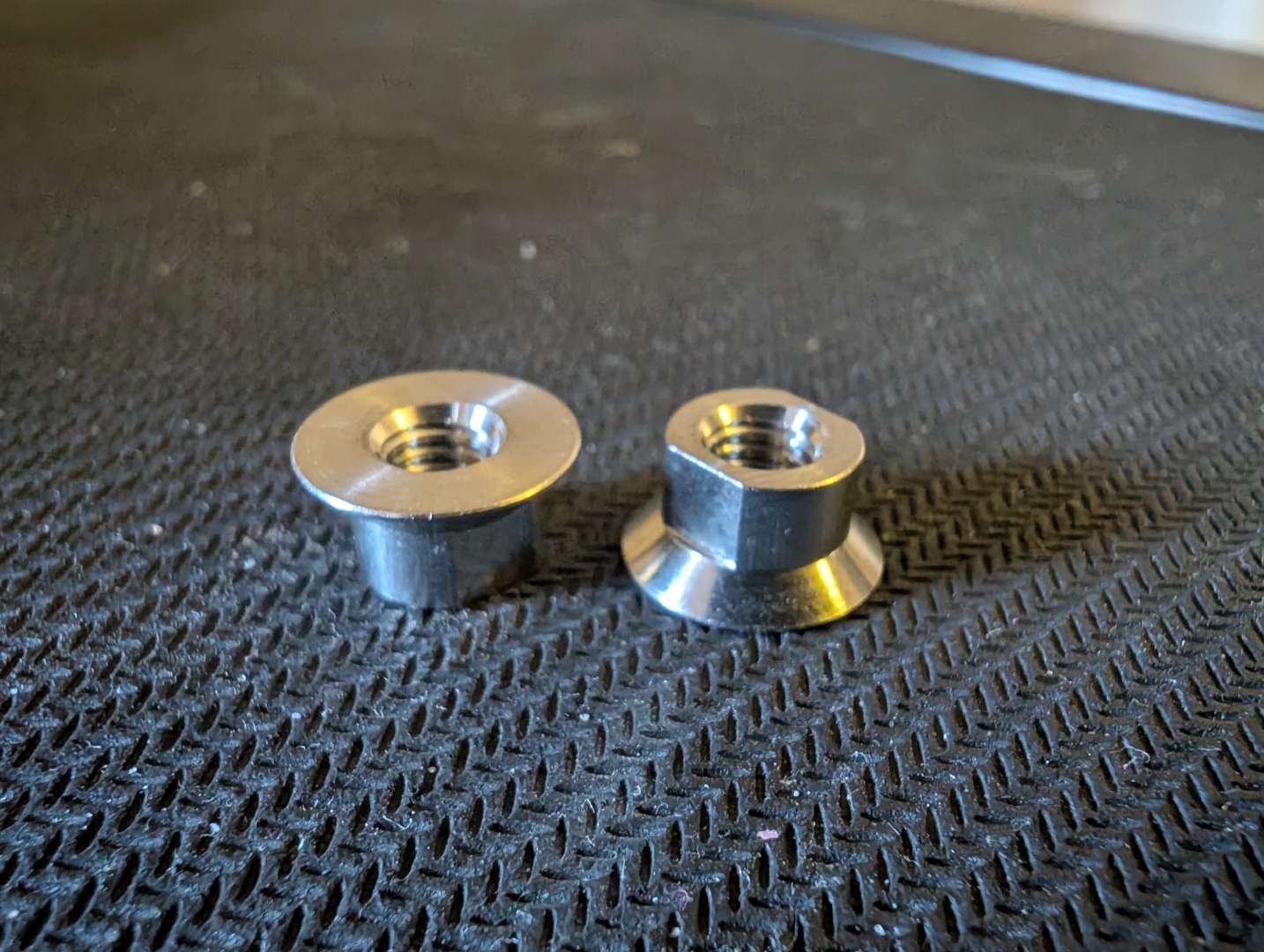

What would you call this fastener, and where might I buy some more of them? Thanks.




Posted : 26/03/2025 1:58 pm
Posts: 21648
Full Member


The object pictured is a 1/4" NPT Female Adapter Vacuum Fitting, likely made of aluminum or stainless steel. It is used to connect ISO-KF flanges to 1/4 inch NPT male pipes.

Or so AI image search tells me.



Posted : 26/03/2025 2:02 pm
Posts: 3608
Free Member


Ai image search is, surprisingly, wrong.

That's a seatpost nut I suspect?

No official name for them afaik, they may well be custom for the post head. Best bet is to find someone with a knackered post and charitable nature.



Posted : 26/03/2025 2:07 pm
Posts: 9108
Free Member


Knowing where it's from might help?



Posted : 26/03/2025 2:21 pm
Posts: 21648
Full Member


It looks like half of a countersunk sex (or Chicago) bolt but the two flats to stop it rotating will make it difficult to find off the shelf.

One of those times where you might need to go back to the manufacturer



Posted : 26/03/2025 2:22 pm
Posts: 1526
Full Member


Could you just replace with a flange nut?



Posted : 26/03/2025 2:24 pm
Posts: 1248
Full Member
Posts: 6949
Full Member
Topic starter


Thanks all for the suggestions - it's part of a wedge for my timetrial bike bars, similar principle to a seatpost nut, long bolt comes in from below and needs to screw into something.

dove1 thks for that link - if that is an M5 size that looks good, but I can't see the dimensions anywhere. But I'll check for other seatpost nuts.



Posted : 26/03/2025 3:14 pm
