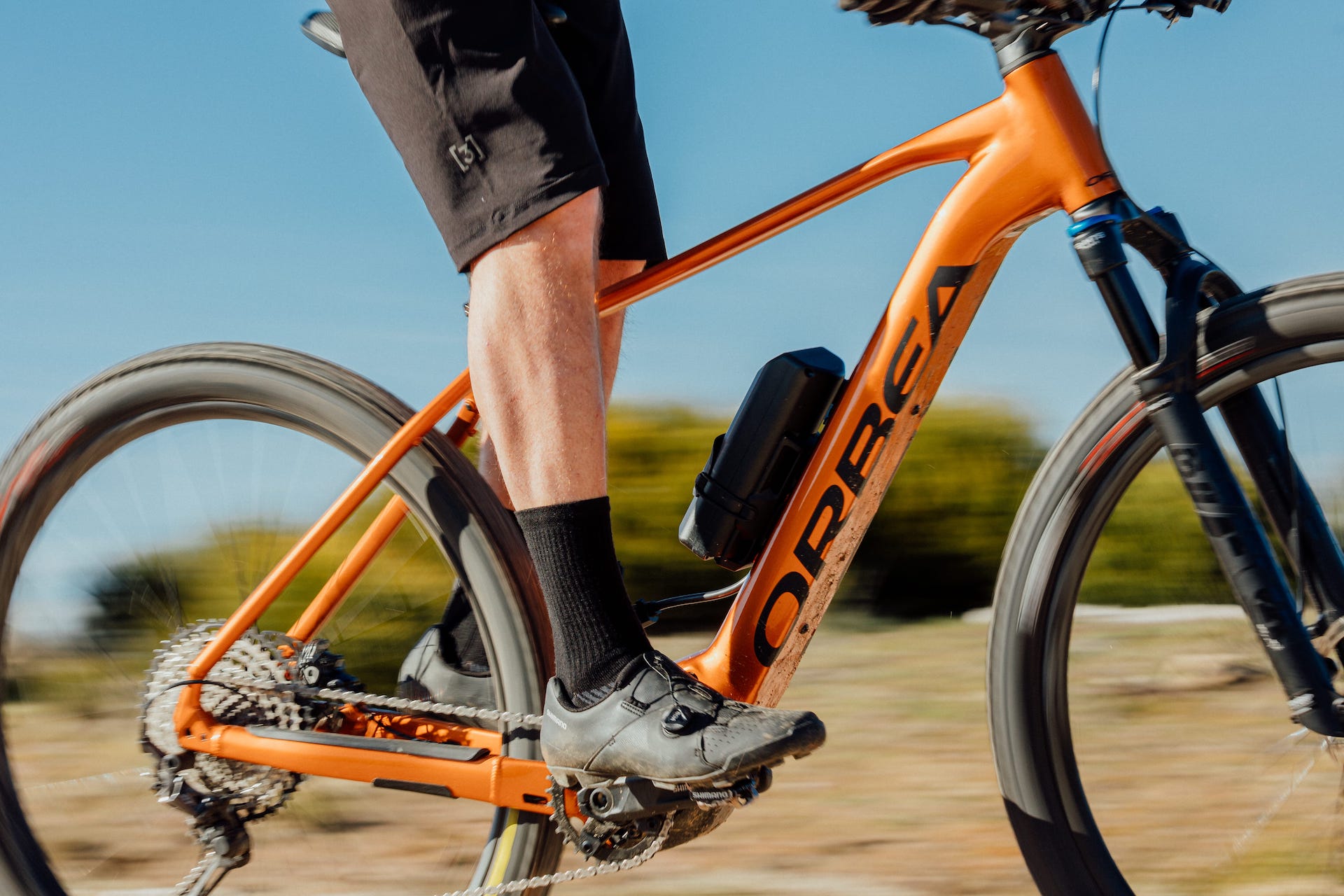

Orbea Urrun – Shimano EP8 RS equipped hardtail for mile munching

by 18

Urrun means ‘far’ in Basque, which is where the Orbea company harks from and hints at what this bike is for.

Following on from the success of their full suspended Rise eMTB with its ‘low fat’ battery capacity Orbea have now taken many, if not all, of those same principals and applied them to a hard tail eMTB. The Urrun.

orbea urrun

Like a Rise but not quite

While the Urrun gest the same custom Shimano EP8 RS motor as the very popular Rise it gets a much larger batter capacity of 540wh compared to the 360wh capacity of the Rise carbon. That is, however the same capacity as the aluminium Rise H. So, the same battery as the Rise H? Not quite. In capacity, yes but in practice it’s a bit different.

The new battery in the Urrun is a proprietary battery designed by Orbea and is claimed to be more compact with a higher energy density than previous batteries. This is how it fits so snuggly inside the downtube offering up a very slim looking profile (for an eMTB).

This battery uses 21-700 cells that optimize energy density, meaning more energy with less volume. Its complete integration in the frame reduces the overall system weight and improves stiffness, which translates into better and easier bike handling”

Orbea press release
Coming in your inbox once a week

Subscribe to Our Newsletter

Join our mailing list to receive Singletrack editorial wisdom directly in your inbox.

Each newsletter is headed up by an exclusive editorial from our team and includes stories and news you don’t want to miss.

We hand pick these deals and refresh them every week.
Singletrack may earn a small commission from any purchases you make

The Urrun is designed as a bike for riding a long way – you can take the cues from what Orbea call their “adventure ready” geometry and spec on that front. The head angle is a comfortable 66 and the seat angle is a steepish 74.6. The reach is pretty conservative across the range and is perhaps the strongest hint that this bike is not for hardtail ‘agro’ purposes and to emphasise that point it comes with a 120mm Fox 34 performance fork on the top of the range model. There’s just two models btw although the Orbea website does offer up a great many customisation options.

There are a plethora of mounting options, with particular emphasis around the rear dropouts that mean you attach pretty much anything you like to this bike. And once loaded up with all your gear, if you find you need some extra power there’s the optional 250wh bottle battery that will take your total battery capacity up to 790wh.

Shimano EP8 RS

Although not as ‘rowdy’ as the Rise the Urrun motor is the same. That means it’s built out of a top of the line Shimano EP motor but with some unique software tuning that effectively limits the maximum torque output from 85 to 60nm. The result is motor that still feels beefy enough when you decide to boost up a steep climb but doesn’t overwhelm you with power. The result of limiting to power leads to Orbea’s claim that the 540wh battery capacity combined with the lightweight bike chassis offers the rider the ride equivalent of a much more ‘full fat’ eMTB.

From the Orbea Presser..

This isn´t just an EP8 with limited torque but rather a totally new control system designed to give the quietest, most natural feeling assistance possible with no lag or drag. The EP8-RS is optimized in the 75-95rpm cadence range so that just as you are pedaling harder the Rise responds instantly with more power, and this is one of the reasons it feels so alive and natural.

Orbea press release

Connections

All the same connection opportunities come with the Urrun in terms of connection to apps and Garmin devices, so you can track everything you do and unlike the Rise, both model options offer up a proper Shimano on bar display/controller unit.

Neat and tidy

Orbea have gone to some length to neaten up the cabling of this bike by way of integrating many of the cables internally. They’ve done this by routing the motor controller through the bar and then into the frame via the stem. The gear cables are also routed into the frame via the custom Orbea stem. The overall result is a very tidy cockpit, although home and workshop mechanics are probably going to be faced with a servicing job handled through gritted teeth. Internally cabling being a riders aesthetic dream but a mechanics nightmare.

orbea urrun neat cockpit internal routing

The frame itself gets a lot of cosmetic attention with all the tubes being hydroformed aluminium with highly polished and smoothed out welds. The overall look is carbon like. There’s no battery hatch so you cannot remove the battery for external charging. Orbea state that this allows them to not only reduce the chances of any battery rattling but also allows them to avoid any stiffness compromises in the downtube construction.

Two options

There are just two ‘off the peg’ models to pick from. The Urrun 10 (We have on test) and the Urrun 30. There are of course, component savings to be had with the Urrun 30 to get it to its RRP of £3499 (£800 less than the Urrun 10) but the most noticeable difference being the lack of a dropper post – again, signalling this bike’s intended purpose.

Inside bits

The very simple on/off button sits down on the BB casing, close to the motor, which on the face of it seems a little ergonomically compromised when compared with other bikes that offer a top tube power button. However, Orbea claim there’s reason behind this choice and it’s to do with the simplification of the internal cable routing. By positioning the power button relatively close to both the battery AND the motor the amount of internal cable routing through the frame is considerably simplified. We can vouch for the fact that over complex electrical harness routing is often the weak point of reliability in eMTB design. Orbea are claiming that the slight inconvenience of power button location is worth it for the extra reliability of operation.

Charging bits

Orbea have done some upgrading to their charging system for the Urrun which takes a lead from electric car charging technology. Lithium Ion batteries have a finite life span which can be extended or shortened depending on how well they are treated – and by treated what we are talking about is how they are charged. Lithium Ion batteries are really quite robust and can be fast charged quite easily – up to a point. That point is at around the 80% mark. For most electric cars, with their massive and very expensive batteries, the charging circuits in the car restricts the last 20% of charge to a much lower rate in order to not damage the battery. Orbea have adopted the same principal with the Uurun. In practice this means the charger will fast charge up to 80% at 4amps and then slow that rate to 2amps for the remaining capacity. This should keep your Uurun battery in tip-top shape for longer. Unfortunately, due to the extra little connections that are needed inside the charging cables Urrun chargers are not backward compatible with existing Rise models and existing Rise chargers won’t work with the Uurun.

That’s the narrative parts over with. Now let’s get into the numbers.

Orbea Urrun Geometry Table

Orbea Uurun 10 Spec List

  • Price // £4299
  • Frame // Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148×12, carrier and kickstand compatible
  • Battery // Orbea Internal 540Wh (Optional 252Wh Range Extender)
  • Fork // Fox 34 Float Performance 120 Grip 3-Position QR15x110 E-Bike Optimized
  • Wheels // Race Face AR 30c Tubeless Ready
  • Tyres // Maxxis Rekon 2.40” 120 TPI 3CMaxxTerra Exo+ TLR
  • Chainset // Shimano Steps EM600
  • Shifter // Shimano XT M8100
  • Rear Derailleur // Shimano XT M8100 SGS Shadow Plus
  • Display // Shimano SC-EM800
  • Brakes // Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
  • Stem // OC1 35mm interface -6o
  • Bars // OC 35mm 20mm Rise 780mm
  • Seatpost // OC MC20 Mountain Control Dropper, 31,6mm, 100mm travel
  • Saddle // Selle Royal Vivo
  • Sizes Available // S, M, L, XL
  • Weight //

Orbea Uurun 30 Spec List

  • Price // £3499
  • Frame // Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148×12, carrier and kickstand compatible
  • Battery // Orbea Internal 540Wh (Optional 252Wh Range Extender)
  • Fork // Marzocchi Bomber Z2 120 QR15x110 E-Bike Optimized
  • Wheels // Orbea OC1 29c Tubeless Ready
  • Tyres // Maxxis Rekon 2.40” 120 TPI 3CMaxxTerra Exo+ TLR
  • Chainset // Shimano Steps EM600
  • Shifter // Shimano Deore M4100
  • Rear Derailleur // Shimano Deore M5120 SGS Shadow Plus
  • Display // Shimano SC-E5003
  • Brakes // Magura MT30 Hydraulic Disc Easy Route Connection
  • Stem // OC1 35mm interface -6o
  • Bars // OC 35mm 20mm Rise 780mm
  • Seatpost // Alloy 31.6x400mm Offset 0
  • Saddle // Selle Royal Vivo
  • Sizes Available // S, M, L, XL
  • Weight //

And finally, before we go off into the hills to test our model, availability on the Uurun is from today. dealers have stock from today so you can go touch and feel one in the real world now.

While you’re here…

Follow us on Instagram

View this post on Instagram

A post shared by Singletrack World Magazine (@singletrackmagazine)

Thanks for popping by - why not stay a while?IT'S FREE

Sign up as a Singletrack Member and you can leave comments on stories, use the classified ads, and post in our forums, do quizzes and more.

Join us, join in, it’s free, and fun.


Viewing 18 posts - 1 through 18 (of 18 total)
  • Orbea Urrun – Shimano EP8 RS equipped hardtail for mile munching
  • malv173
    Full Member

    I feel like I’m being trolled. Is there any point in having an option to not have news on your homepage when things aren’t tagged properly?

    Those aren’t the worst looking bikes though.

    Hannah Dobson
    Full Member

    @malv173 sorry, some recent tech changes have stopped the filter working. We’re working on reinstating it.

    Gary Biles
    Full Member

    As e-bikes go the Orbea range are (imho) by far the best looking ones on the market. I would be interested to know what the rough mileage figures are, i.e. roughly how far can I go. Could this be a bike packing option with the range extender, assuming of course your overnight stops include somewhere to charge the bike. One significant draw back to this is not being able to remove the battery to charge it.

    kelvin
    Full Member

    Orbea are doing great things with these bikes with detuned Shimano motors and small/optional batteries. A really useful and adaptable option for people.

    For me, the proper down “tube”, without a way to easily remove the main battery, are essential to the design (look and weight). Many other options are available with battery doors (and the heavier frame and interrupted look they require), including from Orbea itself. A hard to remove battery does require you to store the bike away from the frost and close to a power supply though.

    julians
    Free Member

    I would be interested to know what the rough mileage figures are, i.e. roughly how far can I go

    Its too hard to predict range on ebikes, as the variables (assist mode, your weight, the terrain, and the speed you travel at ) make so much difference. The range can be enormous if you switch the motor off on the flat bits, and only use eco on the hills, travel at normal mtb speeds for example. or the range could be tiny if you’re heavy, use turbo all the time, and travel at 12mph up hill.

    Once you get one you’ll quickly work out what your typical range is based on your set of variables.

    thegeneralist
    Full Member

    Could this be a bike packing option with the range extender, assuming of course your overnight stops include somewhere to charge the bike.

    I know people tend to diss the misuse of the work “bikepacking” because the perfectly good “touring” was available, but surely the one key difference between touring and bikepackng is that bikepacking implies a bit more wilderness and self sufficiency…
    Ie you don’t have a thirteen amp plug at the end of each day.

    Thus whilst this bike would be grand for touring, it’s not really for bikepacking.

    kelvin
    Full Member

    Or you could say this bike might be better for bike packing than other ebikes. Lots of space in the frame for bags. Perfectly rideable (like the Rise) in eco or off mode when the battery is low or flat. You could tune the trail mode to be an even lighter assist, for gentle assistance when climbing loaded, and aim to only use the boost and walk modes to get your loaded bike up the steeps.

    argee
    Full Member

    The older i get the less i look at a hardtail as being a mile cruncher, as the more miles i do, the more pain i get in the lower back, hips, etc, not to mention contact points on the saddle, especially in summer when the grounds hardpacked and cracked up a bit.

    Would be interesting to see how the fatigue factor works with ebike hardtails for long distances, i struggle on a full susser to reduce the fatigue on arms and joints over say a 40 miler due to the terrain, speed you go at and so on.

    Nigel Leech
    Full Member

    Also, bikepacking can be heading out from home for a night out and back the next day. It’d be a bit grand to call that a “tour”! Having the power to get you further afield than you might otherwise in one day makes a short trip potentially more interesting.

    Gary Biles
    Full Member

    @thegeneralist, get your drift, but you say tomato and I say tomato. If I am carrying all my “stuff” from a to b to c to d etc, but not necessarily camping, I would still call that bike-packing or touring.

    Gary Biles
    Full Member

    @argee Looking at the prices there isn’t too much difference between the high end HT Uurun and the low end FS Rise H30.

    desperatebicycle
    Free Member

    That looks really good. After the issues with my Kinesis Ride Pro – something to recommend to my mate who was considering getting one. After riding proper mountains on an Orbea Wild, I think I can safely say Orbea have the ebike thing sussed out.

    Van Halen
    Full Member

    For me, the proper down “tube”, without a way to easily remove the main battery, are essential to the design (look and weight)

    as an owner of a bike with an integrated battery i`d disagree strongly. if you have to keep your bike somewhere that gets cold in winter its not great for the battery. Also charging it when travelling is a pain in the arse as you need the whole bike not just the battery so you cant just sneak into a pub and plug it in while you have dinner.

    it does look great though. and the detuned motor is a great idea as a full power motor is pointless for most situations. I happily did a lap of cwmcarn on eco only.

    andyspaceman
    Full Member

    Looks like a decent proposition, although the cable-eating stem isn’t going to be much fun from an ownership perspective. Doesn’t look like the frame has any drillings to support conventional routing either, so you can’t even ditch it.

    Have Orbea given any indicators on weight? Presumably somewhere just south of the weight of a Rise H? Or, more simply, what do the Singletrack Towers Scales of Truth say?

    julians
    Free Member

    Have Orbea given any indicators on weight?

    just under 20kg according to the orbea blurb

    kelvin
    Full Member

    as an owner of a bike with an integrated battery i`d disagree strongly

    Surely, you’re just agreeing with me? I said the same about bike storage, temperature and charging. There are plenty of options for people who need an easily removable battery (Orbea have other good bikes that do), but the design of this bike, weight and looks wise, depends on it having a full “tube” for a downtube. Need a battery door? Don’t buy a bike like this.

    RedThunder
    Free Member

    They look great.

    Perfect for my MinceCore style of riding.

    malv173
    Full Member

    @stwhannah cheers! And I apologise for being a big whinger.

Viewing 18 posts - 1 through 18 (of 18 total)

You must be logged in to reply to this topic.
