[Closed] New Light Build (7W COB content)

More of an update to an existing set really.

I've got a pair of quad xp-g r5s (1480 lumens each) that did have an external switch/controller housing which mounted to the stem. A new frame (and shorter stem) meant the old switch units had to go. So... I added a bar mounted box and stuck in another LED, for no good reason other than I could (the selection criteria being that the LED was oblong).

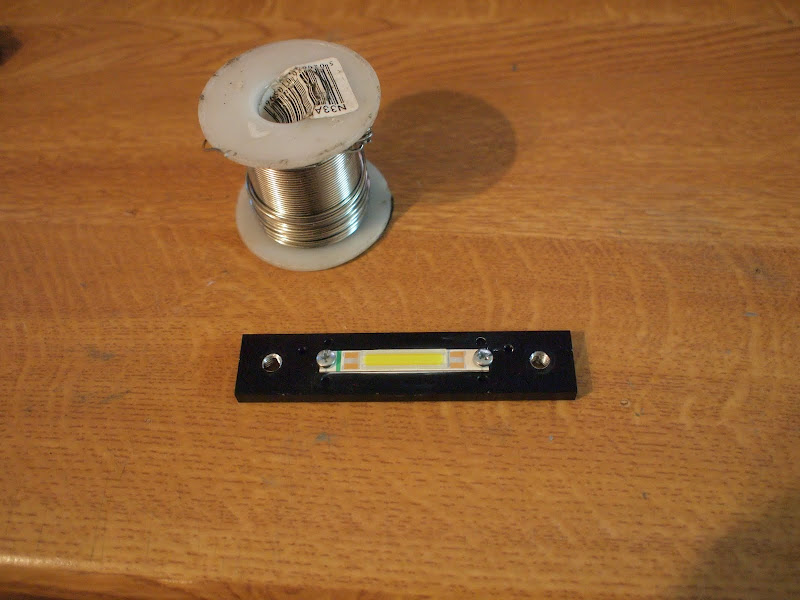

This is a 7W COB (540 lumen):

[img] [/img]

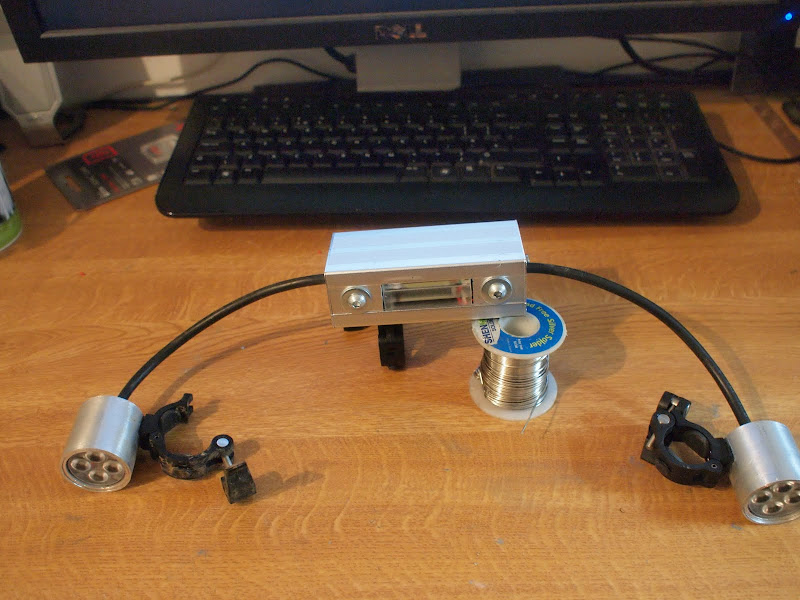

This is the the complete unit (6 degree lens on the COB and 23 on the quads):

[img] [/img]

And some beam shots (base on the old MTBR standard but ISO/shutter balanced to avoid a tripod).

Base:
[img] [/img]

COB only:
[img] [/img]

One of the quads:
[img] [/img]

Everything:
[img] [/img]

And for rerence...

P7 with 15 degree optic:
[img] [/img]

Twin xp-g with 10 degree optics:
[img] [/img]
