[Closed] Brand-x dropper, changing amount of drop?

Posts: 480
Free Member
Topic starter


Can the amount of drop of the brand-x dropper be changed? I have just watched a vid about the PNW version of it and apparently the drop is adjustable in 5mm increments



Posted : 11/11/2020 5:16 pm
Posts: 0
Free Member


Apparently yes using the one-up spacers.. not tried it but have it on very good authority



Posted : 11/11/2020 5:51 pm
Posts: 2440
Free Member


I can confirm it works with the One Up spacers. I had to do it on my wife's post.



Posted : 11/11/2020 6:09 pm
Posts: 0
Free Member


Yes, yes it can. As above, the One-up method works fine with 31.6 version.
The 30.9 is slightly different inside so the spacer "arms" have to be very thin and are not stiff enough to work properly.



Posted : 11/11/2020 6:10 pm
Posts: 10282
Full Member


Be careful on this one - there seem to be 2 versions of the Oneup post (with 2 different kinds of shim) and 2 different versions of the brand x (at least). I bought the white plastic shim kit which works with earlier brand x droppers but it doesn’t work with the newer style brand x. Maybe the brass later style Oneup shims will work with the later brand x?

The older brand x had a smooth top collar - the later one has a kind of big groove in it.



Posted : 11/11/2020 7:45 pm
Posts: 2365
Full Member


I meant to update the Brand X thread from last week but I've been a bit busy.

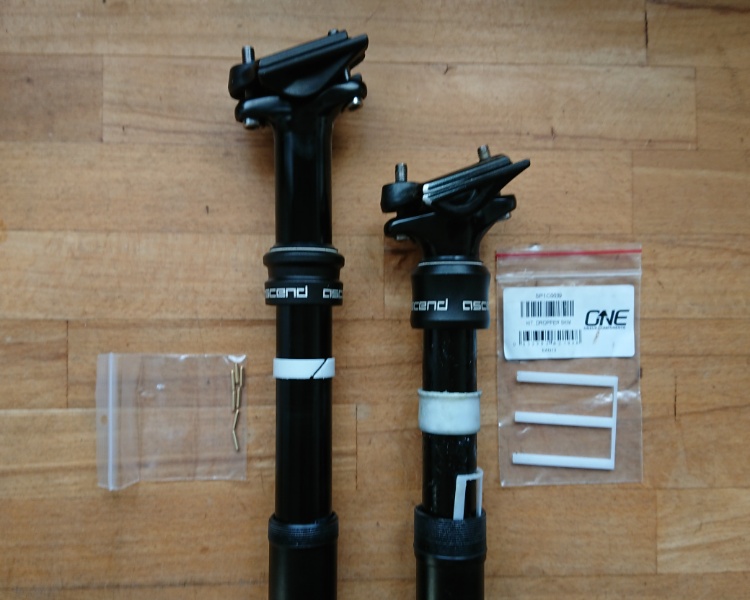

I had a go at shortening the 2020 Brand X post, you can tell the versions apart by the collar. New on left, old on right. You can see how the OneUp shim fits the post on the right.

Old vs new Brand X

I also have the 10mm OneUp v2 metal shims (I've a lot of droppers) but the 2020 Brand X doesn't seem to have the grooves just below the collar to fit them. Could be I didn't take the post apart enough but I suspect while they may still be similar internally it might be some extra machining OneUp do to the parts specially for the metal shims.



Posted : 11/11/2020 8:06 pm
Posts: 2440
Free Member


Just to add, it's the 30.9mm (older) version I've done it on. It's a bit fiddly, but it 100% works.



Posted : 11/11/2020 8:37 pm
