The new V10 has landed

by 1

After a successful year of Syndicate racing, the new Santa Cruz V10 is finally hitting the shops, if you want to imitate Ratboy or Peaty now’s your chance. Here’s all the info from Santa Cruz:

Ermagerd V10
Ermagerd V10

The arrival of 27.5” wheels marks a sea change in the V10’s evolution.

In development with the Syndicate since early 2013, we wrung full potential out of the new wheel standard before unveiling it at the races. The restraint paid off, and the new V10 hoovered up a 2014 World Cup title and a World Champs medal within weeks of being released.

Drawing on feedback from Peat, Minnaar and Bryceland on their personal settings, the 6th generation of our flagship model now offers 216mm / 8.5” of travel in two adjustable geometry positions:

HIGH: 64° headtube angle / 360mm bottom bracket height.

LOW: 63.5° headtube angle / 353mm bottom bracket height.

The shock rate has been tuned to be less progressive than the previous model, delivering more consistent damping throughout the travel.

Carbon lay-up analysis and frame shape optimization allowed for more efficient use of material, and the savings were then reinvested into other areas to ensure the bike withstands Ratboy’s huge flat landings. The front triangle and swingarm sport larger-diameter sections, but we’ll refrain from the usual drone about the positive effect that has on strength and stiffness.

The new frame benefits from a slightly longer reach to suit evolving rider preferences. However, our athletes felt we always struck a good balance with our chainstay length, so we focused on maintaining this dimension when accommodating larger wheels.

As if a complete redesign weren’t enough, we’ve also introduced the new Carbon C frame with a Zee build kit. This build puts V10 performance within reach of more riders than ever before, lifting the race pace of World Cup athletes and privateers alike.

Rip it
Rip it

Features

  • Full carbon frame and swingarm
  • Carbon C and Carbon CC frame options
  • 216mm (8.5″) VPP suspension
  • 27.5″ wheels
  • Adjustable geometry with HIGH & LOW settings
  • Double sealed pivots for long bearing life
  • Dual grease ports on lower link for easy maintenance
  • Integrated fork bumpers with cable guide
  • Molded clip-on chainstay and upright protector
  • Full carbon dropouts and disk mounts
  • Angular contact bearings maximize stiffness
  • Collet axle pivots lock in place without pinch bolts
  • Molded rubber swingarm and downtube protection
  • 157mm rear axle spacing
  • Threaded BB for creak-free riding and easy installation
  • ISCG-05 tabs for chainguide compatibility
  • Sizes: S, M, L, XL

Carbon CC Frame & Fox DHX RC4: £3299 GBP
Carbon CC Frame & Rockshox Vivid R2C: £3299 GBP

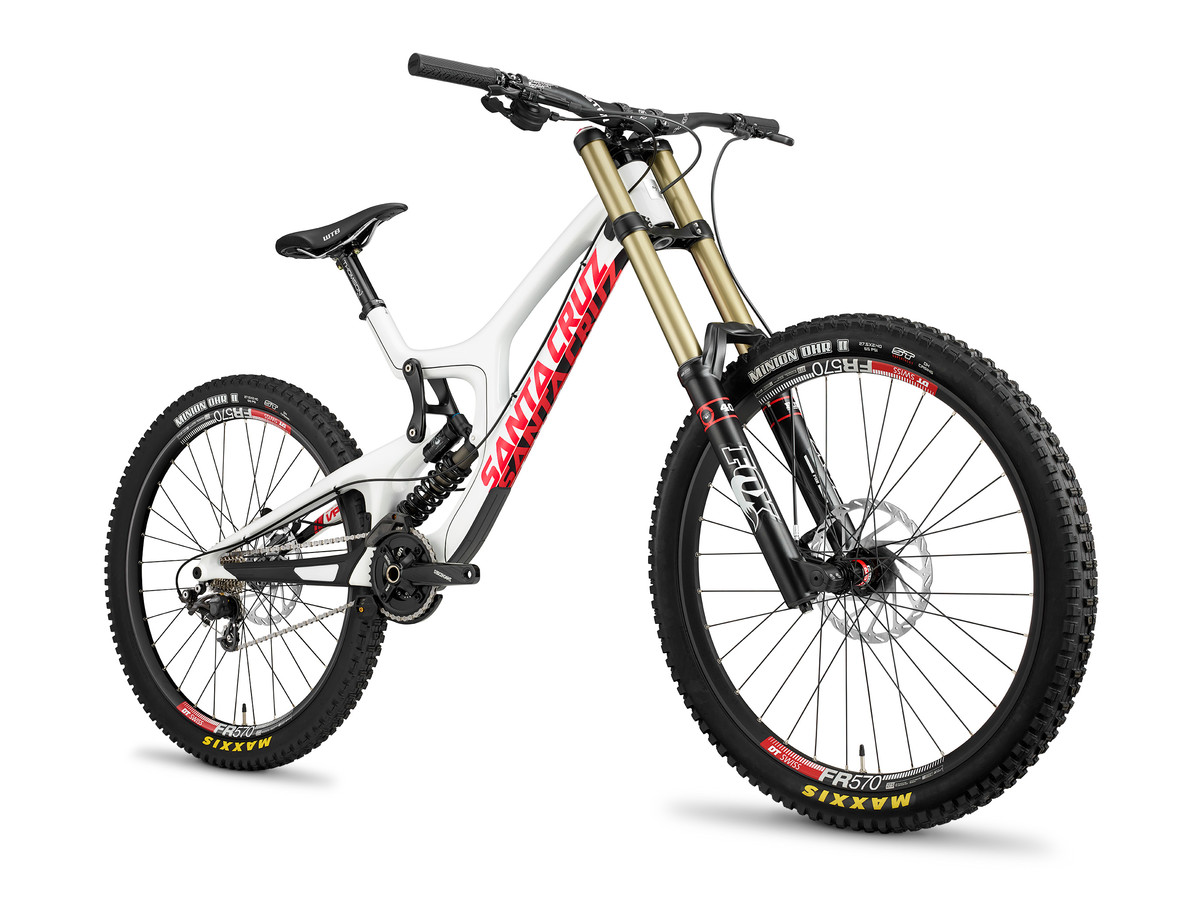

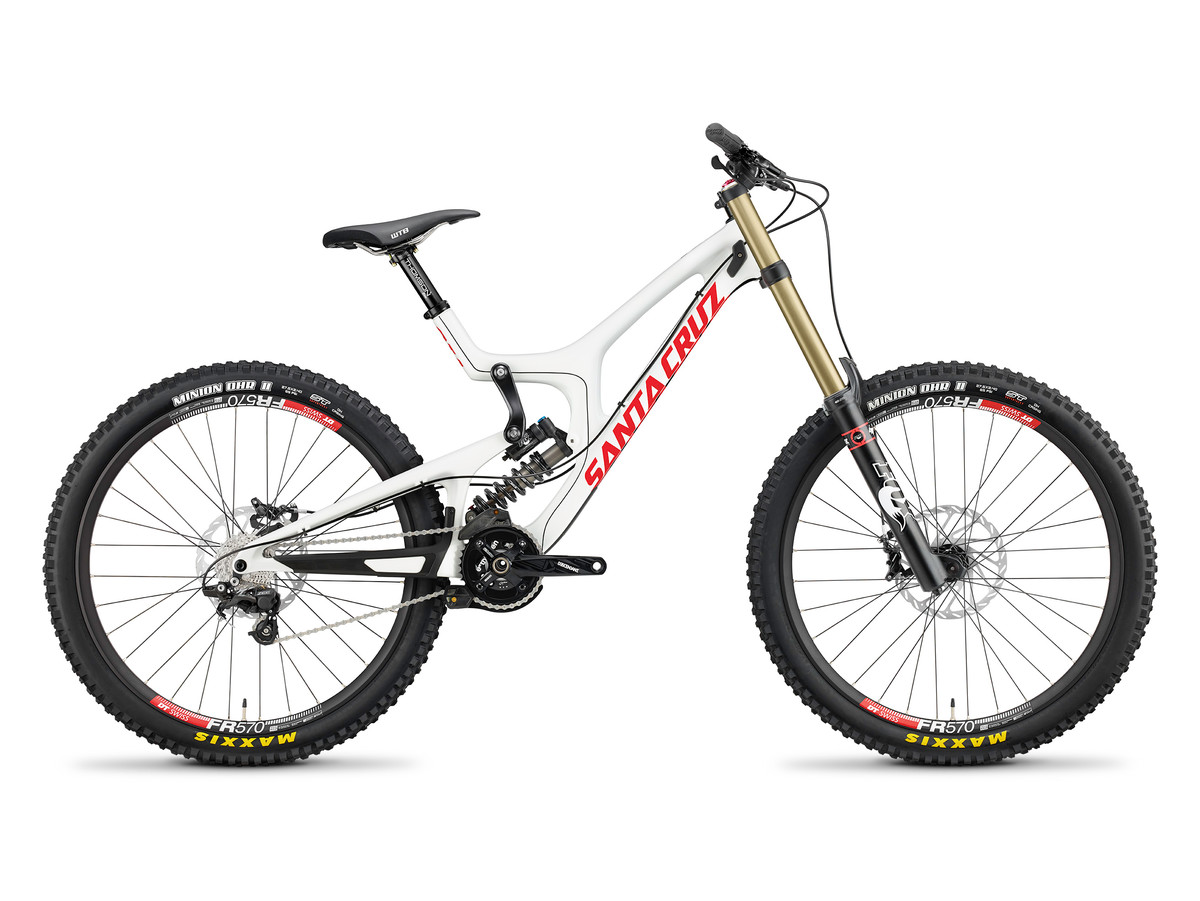

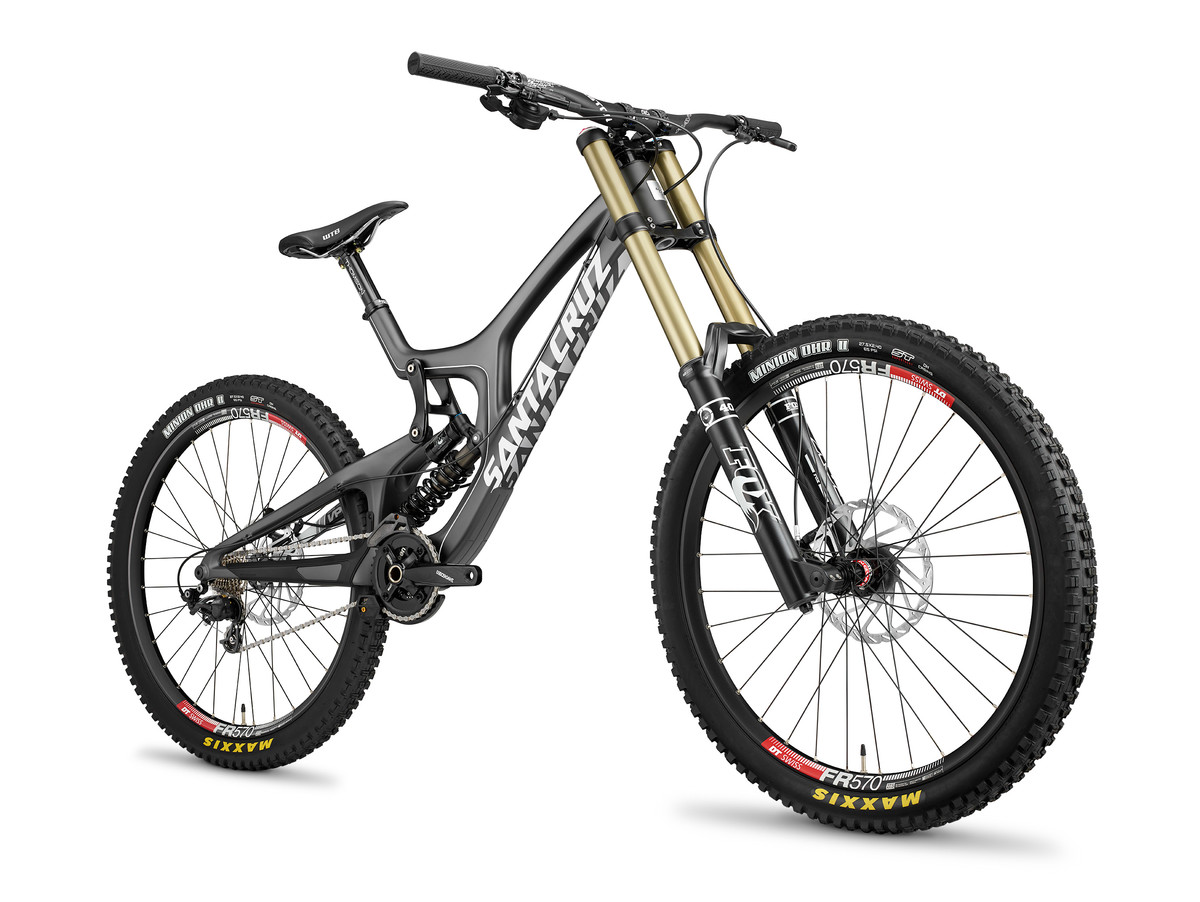

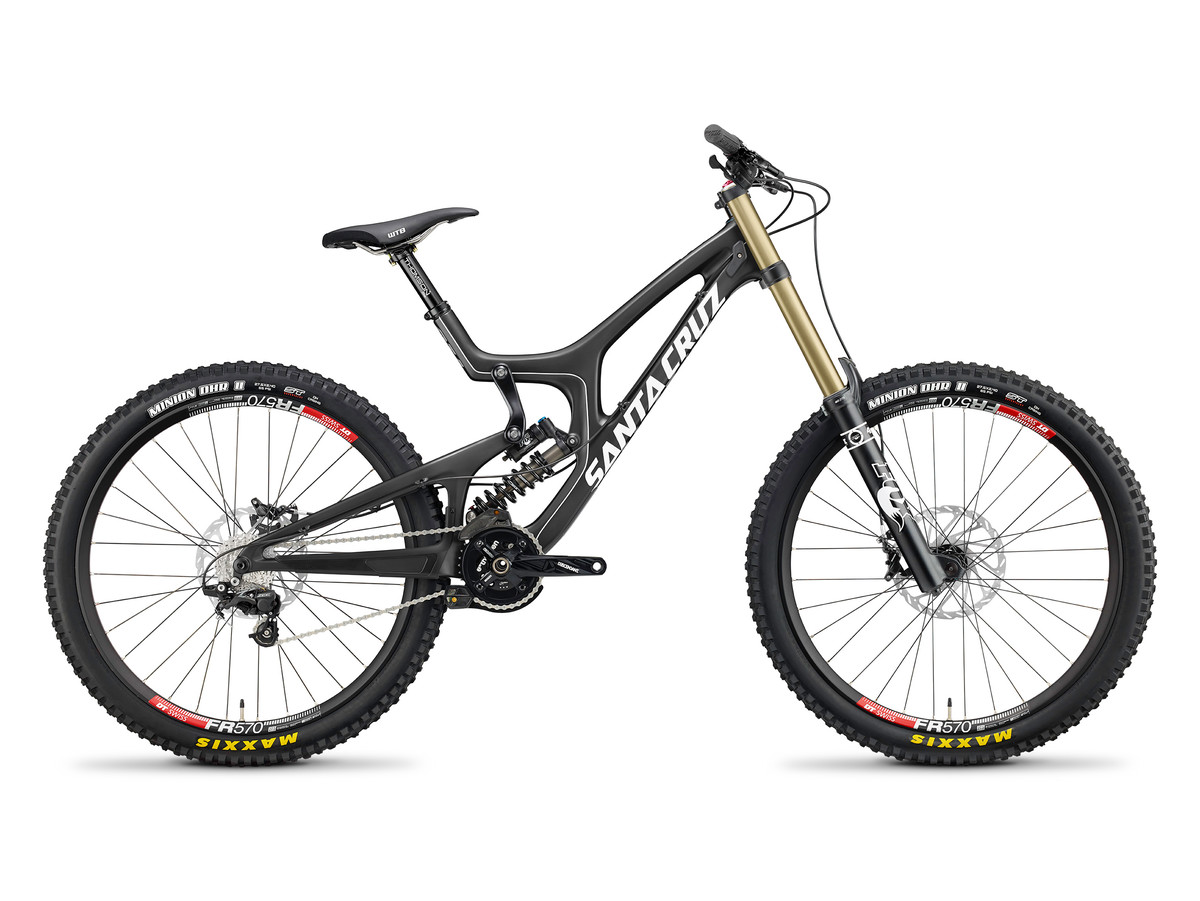

Carbon C  complete bike from £4899 GBP

  • Shimano ZEE drivetrain and SRAM Guide RSC brakes.
  • Fox 40 R O/B Fork
  • Shimano ZEE Short Cage Derailleur
  • SRAM Guide RSC w/Avid G2CS Rotors, 203mm Front, 200mm Rear Brakes
  • SRAM Descendant, 165mm, 36t Cranks

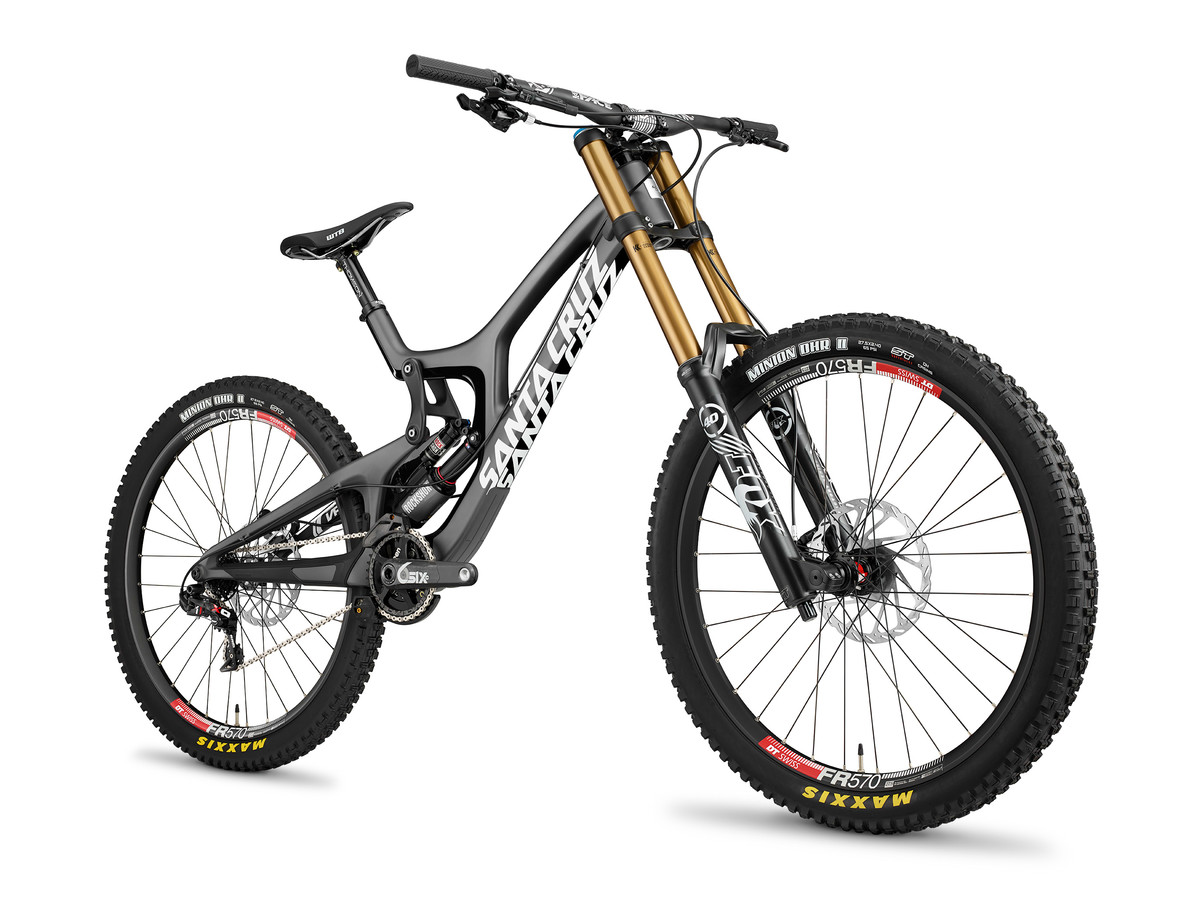

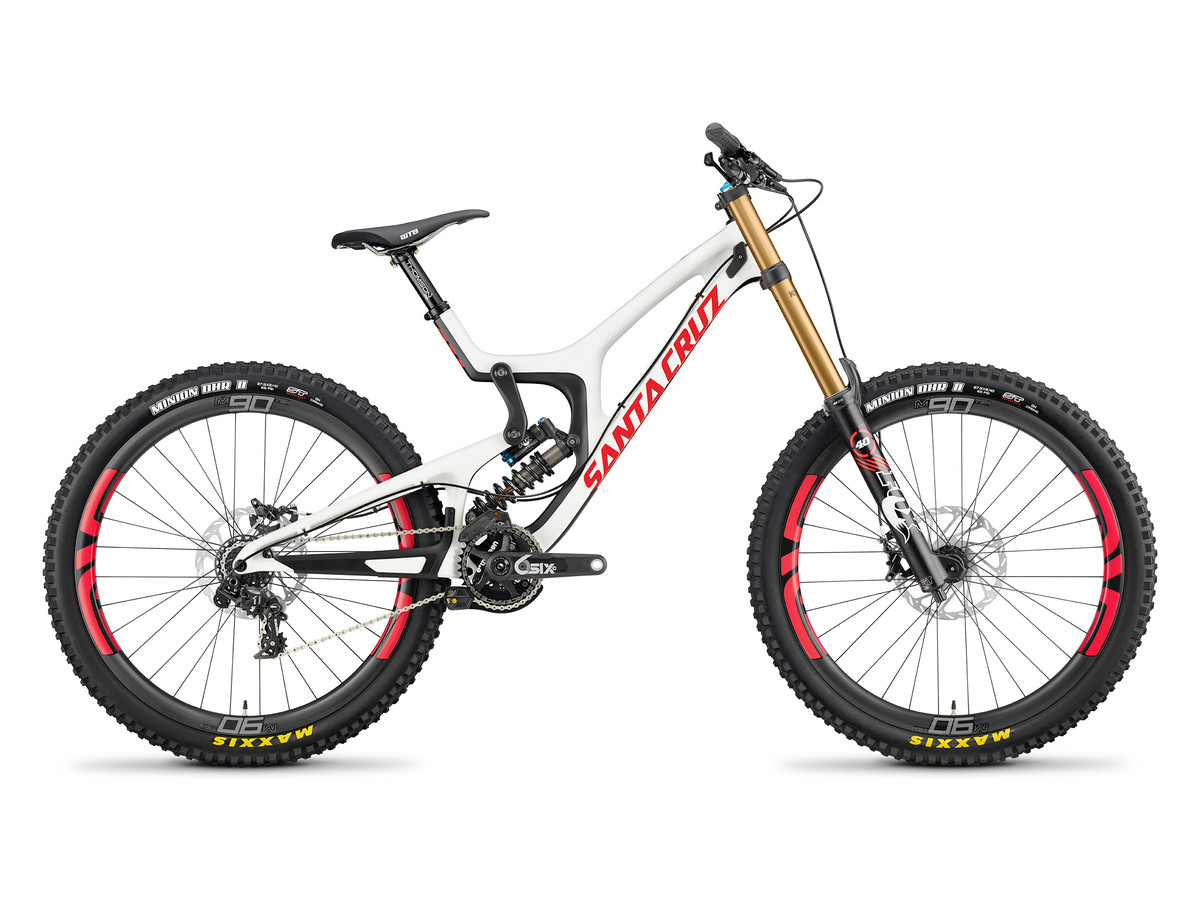

Carbon CC complete bike from £7399 GBP

  • Downhill-specific, 7-speed X01 drivetrain, DT Swiss wheelset, SRAM Guide RSC brakes
  • Fox 40 R Float RC2 Factory Kashima Fork
  • SRAM X01 DH 7-Speed Derailleur
  • SRAM Guide RSC w/Avid G2CS Rotors, 203mm Front, 200mm Rear Brakes
  • Raceface SIXC Cranks
