Fox has a new addition to the Transfer dropper range, and it offers a huge 175mm of travel.
See all the details, including specs, pricing and confirmed weights here; https://singletrackworld.com/2019/01/fox-drops-longer-dropper-the-transfer-post-now-goes-to-175mm/
Show More Show Less View Video Transcript
0:04
Hey everyone, welcome to Singletrack. My
0:06
name is Will and
0:09
I have a box, but
0:11
it's what's inside the box that's
0:13
exciting. So, I figured we should do a
0:15
video and show you exactly what's inside
0:18
here. All right, let's see what's in
0:20
this box.
0:24
Oh, two more boxes.
0:27
Get that out of the way there.
0:29
And this is
0:32
not a fork, not a shock,
0:35

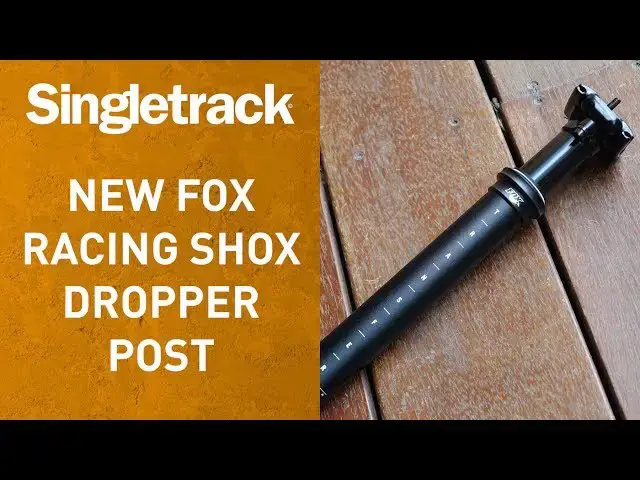

it's a new dropper post from Fox. This
0:37
is the Transfer dropper post.
0:40
But as you might be able to tell by its
0:43
rather generous length here, this is a
0:46
new 175
0:49
mm dropper. Let's
0:51
There we go. Or in American speak, 7-in
0:54
dropper. Um this is the 31.6 model.
0:57
They're also available in 30.9, so you
0:59
can get both diameters. Uh but yes,
1:02
quite a long dropper post. Now,
1:04
up until now, Fox has only offered the
1:06
Transfer in 100, 125, and 150 mm drop
1:12
options. This is new, brand new 175 mil.
1:15
So, for those who are looking for a
1:17
little extra travel out of their dropper
1:19
post to get that seat nice and low and
1:21
out of the way, this might be one to put
1:24
on the list. So, we'll go through some
1:26
of the details on this dropper post
1:28
because structurally,
1:29
um this 175 Transfer is very similar to
1:33
the existing dropper post. The main
1:35
difference, as you be able to tell here,
1:37
is it's pretty long. So, let me just get
1:40
out my magical measuring device and
1:44
I will show you how long it is. The
1:46
total length of this post is just over
1:49
530 mm. I believe the spec is 531.2
1:54
or something like that. So, um so pretty
1:57
long. Um that means you've got a fair
2:00
bit of lower tube and a fair bit of
2:02
upper tube above or outside of the frame
2:04
as well. So, the total length is quite a
2:07
bit longer than the 150 mil dropper.
2:09
Now, there are two other measurements
2:10
that are important to work out if this
2:12
dropper is going to fit in your frame.
2:14
Of course, one of the most important is
2:16
the distance between the saddle rails
2:19
and the bottom of this collar here.
2:22
Basically, if your current
2:25
is shorter than this distance, then this
2:27
post won't fit. So, this is just around
2:30
230 mm from the middle of the saddle
2:33
rails to the bottom of the collar. So,
2:35
once you've got the seat post in your
2:37
frame, and if you do have it slammed all
2:40
the way down, the minimum seat post
2:42
height is about 230 mm, this distance
2:45
here. So, if you've got less seat post
2:47
hanging out of your frame than 230 mm,
2:50
this won't fit. You're going to have to
2:51
look for a shorter dropper post.
2:53
Now, the other measurement that's worth
2:55
looking at is the maximum insertion of
2:58
this one. So, if we measure on the
3:01
underside of the collar to the bottom of
3:03
the cable stop, it's just shy of 300 mm,
3:06
about 299 or 298 mm. And that's
3:09
basically how far this can sit inside
3:12
the frame with clearance for the cable
3:14
stop at the bottom. So, if you have a
3:15
frame that has a curvy seat tube, um or
3:18
an offset seat tube, or a pivot running
3:20
through the seat tube that limits how
3:22
much seat post can go inside the frame,
3:24
that measurement's going to be important
3:25
to you as well. We should talk about
3:27
this because you can get the Transfer in
3:30
internal cable routing option, which
3:32
we've got here. So, this is a stealth
3:34
routed option. You can also get it in an
3:36
external option where the cable mounts
3:38
to the outside of the collar up the top
3:41
here. Um this is the internally routed
3:43
option, so your cable actually loads
3:46
into the bottom cradle here of the
3:48
dropper. And uh I'll just give you a bit
3:50
of a demo. There we go. That's the
3:53
activation mechanism uh for the Transfer
3:56
dropper. So, when the cable pulls there,
3:58
you're actually pushing a piston inside
4:01
here, and that activates the hydraulic
4:03
cartridge inside the dropper post and
4:05
allows the seat to move upwards and
4:07
downwards on the on the stanchion there.
4:10
So, that's the mechanism there. It's
4:12
pretty easy to move with your hands, uh
4:15
which to be honest, not all cable
4:16
activated dropper posts are. And by the
4:19
time you get that linked up to the
4:20
remote, um that ends up being quite a
4:23
light action on the remote that I found
4:25
anyway testing Transfer post over the
4:27
years. Now, to give you some weights and
4:31
specs on this, this is the Performance
4:34
Series version, so it's the all black
4:36
dropper post option. Um now, in the 31.6
4:39
mm length that we have here, the weight,
4:42
confirmed weight for just the post on
4:44
its own, is 630 g. So, it is a bit
4:47
heavier than the 150 mm drop. And you do
4:50
have a fair bit more metal on this post
4:52
compared to the shorter travel option,
4:53
so it is a little bit heavier. So, 630 g
4:56
for the post on its own. Uh price-wise,
4:58
in Australia, this is going to sell for
5:00
$479.
5:02
And in the UK, it's going to sell for
5:03
319 lb. So, the pricing is unchanged
5:07
compared to previous Transfer dropper
5:08
post. You can get this in a factory
5:11
version, which will have the gold
5:13
Kashima coated upper. Now, just a hot
5:15
tip here,
5:17
structurally and internally, they're
5:19
identical dropper posts, both the
5:21
Performance and the Factory version. The
5:23
only difference is that Kashima upper.
5:25
And um that'll cost you a bit of extra
5:27
money, depending on whether it's worth
5:29
it to Uh I believe it's about 50 quid
5:32
more in the UK, and in Australia,
5:34
looking about 80 dollars more to get the
5:36
factory version. Um but
5:38
performance-wise, uh the Performance
5:40
Series is identical to the factory
5:42
version. Up at the top here, we have
5:44
this nice twin bolt clamp for locking
5:47
down the saddle rails. This is
5:49
compatible with both metal and carbon
5:51
fiber saddle rails, so you can fit
5:53
oversized carbon rails into this. And it
5:56
uses two bolts to secure the the saddle
5:58
to the post. And that gives you a really
6:00
nice range of adjustment for adjusting
6:03
the saddle tilt, um bringing the nose up
6:05
or bringing the nose down. So, really
6:07
nice and easy to to set the seat angle
6:10
with this twin bolt design. We should
6:11
have a bit of a look at the lever as
6:13
well. So, let me just grab this one out
6:15
of the box here. And this is, as you can
6:18
tell, a Raceface lever. Now, Raceface
6:20
and Fox are part of the same company,
6:23
and that means they're offering both the
6:25
Fox 1x and 2x remote and the Raceface 1x
6:29
lever. You buy these aftermarket, so the
6:31
post comes on its own, and you BYO
6:34
lever, or you can purchase one of these.
6:36
This is the Raceface 1x lever. So, I'll
6:38
just pull this out of the package and
6:40
we'll uh just get rid of those so we can
6:44
show you what the lever looks like. The
6:46
lever's been around The Raceface lever's
6:48
been around for a little while, so this
6:50
is a really nice piece of machined
6:52
alloy. You've got good textured grooves
6:54
there for your thumb to hit, so plenty
6:55
of traction there. And we've got two
6:58
little bolt holes here. And if that's in
7:01
here in the box, yes, it is.
7:03
That gives you two different positions,
7:05
two mounting positions for the lever.
7:07
So, once you've got that secured to your
7:08
handlebar, you've got two different
7:10
positions there to adjust the lateral
7:12
position of the lever to get in the
7:14
right spot for your thumb. So,
7:16
decent amount of adjustability there.
7:18
It's rolling on a on a nice smooth
7:19
pivot. And this guy will pinch the cable
7:23
up the top here. So, the head of the
7:25
cable,
7:26
um or the cable nipple, if you will,
7:28
that's this little guy here,
7:30
that actually loads into the bottom of
7:31
the post, and then the free end of the
7:34
cable
7:35
is secured up at the lever end with that
7:37
pinch bolt there. So, it makes the
7:39
system really easy to install um
7:41
relative to other cable droppers where
7:43
it's the reverse of that one. I much
7:45
prefer this system personally. I think
7:47
it's a lot easier to work on and a lot
7:48
easier to install.
7:50
So, there you go. That's the Fox
7:52
Transfer dropper post, uh now available
7:55
in a 175 mm drop. So, loads of travel
7:59
there for those who are looking for a
8:01
little bit more height adjustment out of
8:03
their dropper seat post. Now, if you
8:05
want more details on this
8:07
then jump on singletrackworld.com,
8:09
and you'll be able to see all the
8:10
specifications, including all of those
8:13
measurements we were talking before, to
8:15
work out whether this will fit into your
8:16
frame.
8:17
All right, guys. We'll see you next
8:19
time.
