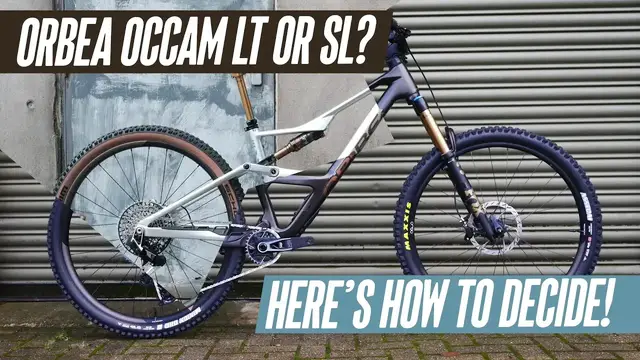

The Orbea Occam Twins
Apr 29, 2024
What's better than one Occam? Two of course!
Why has Orbea made two different Occams you ask? Amanda reveals all.
Show More Show Less View Video Transcript
0:00
Hi, I'm Amanda from Single Track World and in this video we're going to go over the new
0:05
Occam from Orbea, or rather the Occams, plural, because Orbea now has two models called Occam
0:28
Why on earth does it do that you may ask? The simple answer is that an Occam is a trail
0:32
bike but the category we call trail bike is now so broad that Orbea has decided to cover
0:37
it with two bikes instead of one. The two bikes in question are the Occam SL and the
0:42
Occam LT. Now then, if you were to solely focus on the amount of suspension travel that these
0:49
two Occams offer, you may roll your eyes and wonder what all the fuss is about. There's
0:53
not that many millimetres of difference here. The SL has 140mm rear travel and the LT has
0:59
150mm. Without wishing to give the game away so early into the video, it's the difference
1:05
between the two bikes frame geometries and the suspension kinematics where the distinction
1:10
between them is found. If you've ridden full suspension mountain bikes for any amount of
1:15
time, you'll already be aware that the amount of travel they happen to have is not always
1:20
the be all and end all of how that bike handles. Geometry is the main thing. Geometry closely
1:25
followed by suspension actuation. So let's delve into some geometry charts of these two
1:30
Occams. Whilst there are a few geometry numbers that are basically the same on each, the bottom
1:38
bracket, the chainstay length, the head tube length and the seat tube length, there are
1:43
many more geometry numbers that differ. The Occam SL has a longer effective top tube
1:49
in the rear and reach. The Occam LT has a longer wheelbase. The SL has a steeper seat
1:55
angle. The SL has a lower stack height. The LT has a slacker head angle. These are all
2:02
with the Occam LT in its low geometry setting because, let's be honest, that's where all
2:08
flip-chip bikes live in the real world. But what do all these geometry differences actually
2:26
mean out on the trail? As ever, the answer is complicated with far too many variables
2:31
to be 100% definitive about it. But this is kind of what we're here to do, so here goes
2:38
The Occam SL is the lower slung, quicker steering machine, whereas the Occam LT is the more
2:44
heads up and stable ride. Heads down versus heads up, if you will. Or maybe fair miles
2:50
versus air miles, maps versus laps. Obviously, this is a very crude way of putting it and
2:58
you can always tweak and push a bike here and there in its attitude purely by virtue
3:02
of adjusting a few settings or swapping some parts out. But in broad strokes, that's how
3:07
we approach these two different Orbea Occams. Delving into more geeky territory, we have
3:17
the black arts of suspension kinematics. Fathom and explain. Now then, both Occams have a
3:23
relatively high level of anti-squat throughout the suspension stroke. It never really dips
3:28
below 100%. Without getting bogged down in suspension theory, this essentially means
3:33
that both Occam models have a strong focus on pedalling response, not just bump absorption
3:39
In layperson's terms, they shouldn't squidge under power. Your rider input should result
3:43
in instant bike output. If you want an Orbea with less of a pedalling priority and more
3:50
of a focus on heavy hitting, traction focused riding, have a look at the Orbea Rallon. In
3:56
terms of the progression of the suspension on both of the Occams, they are similar in
4:01
one regard and quite, quite different in another. They offer the same degree of progression
4:07
approximately 22% from sag, but the shape of the curve is different. The Occam SL suspension
4:15
is delivered much more linearly than the Occam LT. So what does this mean on the trail? It
4:21
means so many different things at so many different times because that's the nature
4:24
of mountain biking. But in a couple of nutshells, it means the SL has a higher level of support
4:29
in the middle, whereas the LT has a softer mid stroke but ramps up at the end. This makes
4:36
sense in that the SL is more about hustle and pump and the LT is more of a get out of
4:40
jail technical terrain tamer. Turning towards less complicated matters, there are some practical
4:50
differences between the two Orbea Occams. The Occam SL comes with remote suspension
4:56
lockout and the shock yoke is made from carbon fibre. The Occam LT has built in geometry
5:02
adjustment via the quick flip chip and the yoke shock mount. Officially, this adjusts
5:07
the head angle by half a degree and the bottom bracket height by 8mm. It also adjusts the
5:13
seat angle and the reach by approximately one smidge. In terms of build kit, there are
5:20
some items that leap out straight away as being indicative of the two different attitudes
5:25
and intentions of these two different Occams, namely the forks, the rear shocks and the tyres
5:30
The Occam SL sports 140mm travel Fox Float 34 up front and a Fox Float shock at the rear
5:38
both with remote lockout. The Occam LT gets a girthier Fox Float 36 fork with a generous
5:46
160mm of travel and this M Team Spec model gets that eye-catching orange Fox VHX coil shock at
5:53
the rear. The SL comes with Schwalbe Wicked wheels and the LT comes with Maxxis dissectors
6:00
Looking a bit further down the spec sheets, plenty of other component choices help to
6:06
illustrate the Occam's different duties. The SL gets SRAM Level Series brakes
6:11
whereas the LT gets beefier SRAM Code brakes. The wheelset on the SL is the lighter and narrower
6:19
rim Aqua Mountain Performance compared to the wider rim and sturdier Aqua Mountain Control
6:24
wheels on the Occam LT. Even the saddles tell a tale, the SL having more of a minimal padding
6:32
heavily shaped Fizik Terra Rhydon X1 compared to the more cushioned and flatter Ergon SM
6:38
Enduro Comp on the LT. So enough about the differences, what do these two Occams have
6:45
in common besides a name? Steep and deep, excuse me. Steep and deep is how Orbea chooses to describe
6:55
its seat tubes. Basically, it means the frames have steep seat angles for efficient and comfortable
7:00
climbing whilst also offering steep dropper insertion due to the lack of obstructions in
7:05
the seat tube. Orbea claims that pretty much everyone should be able to run a 230mm travel
7:11
dropper in an Occam. This short seat tube and impressive standover also means that riders can
7:17
choose to size up if they prefer a longer reach frame without running into any standover or saddle
7:23
height issues. Both Occams feature a storage compartment in the down tube called Locker for
7:32
holding spares, snacks and even layers of clothing. And stashed away in the fully loaded Pivot is a
7:38
bespoke multi-tool with a 2, 3, 4 and 5mm Allen key. There's a 6mm Allen key in the rear wheel axle
7:45
So there you have it, the Orbea Occam SL and LT. Both trail bikes, both very different rides
