  • 1×9 Chain Guide Device
  • Skoolshoes
    Free Member

    Inspired from a previous thread, I made my own chain device for under £15! It works well (no chain rub at all) and actually looks ok too 🙂

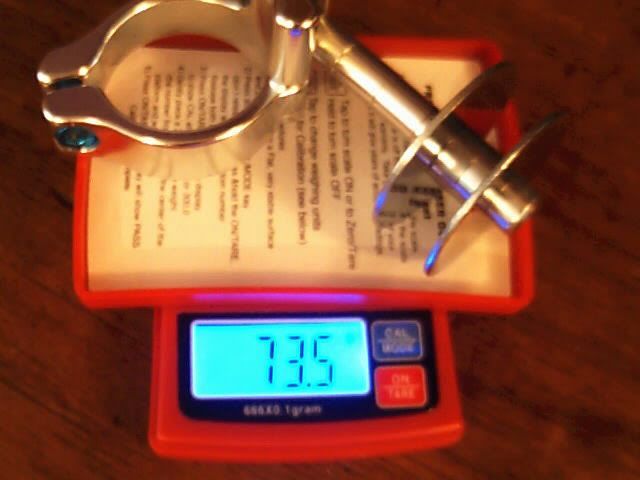

    Weighs in at 73.5g. Not the lightest but could be made lighter with alu washers / barrel nut.

    Just thought I'd share my info to make it easier for other people that might want to make their own!!!

    CSN Clamp for Braze-on Front Mech 31.8mm
    £5.25 + 2.95 p+p Ribble Cycles

    Alu bolt M6 x 70mm £1.06
    Alu collar M6 thread 8.5mm o/d – 10mm length x 3 93p
    Alu collar M6 thread 8.5mm o/d – 5mm length x 1 25p
    + £1.99 p+p Tastynuts

    2 x 6mm Cup washers (taken from old V-Brake Pads)

    M6 Cross dowel / barrel nuts 35p
    M6 Washer 40mm diameter (x4) £2.20 Ebay

    BigDummy
    Free Member

    I have just paid about £35 for a Pauls Comp one. Mine is clearly better, as it has vastly more price than yours. 🙂

    Seriously, lovely job.

    Skoolshoes
    Free Member

    Thanks!
    I had just ordered a Paul comp chain keeper. Unfortunately, I received an email to say they had just ran out of stock. Rather than wait (or use a cheaper DMR chaincage) I thought I'd have a go at making one…
    Currently making another for the gf's bike 🙂

    Fresh Goods Friday 696: The Middling Edition

    Fresh Goods Friday 696: The Middlin...
    Latest Singletrack Videos
    john_l
    Free Member

    where were you ordering your Paul keeper from?

    Skoolshoes
    Free Member

    Fresh Tripe. I see that they have 2 in stock now but I'm happy with mine 🙂

    john_l
    Free Member

    Yours looks great. Was wondering as I ordered from Freshtripe on saturday & was showing in stock.

    packer
    Free Member

    Nice work!
    Nylon washers would be lighter and would make less noise if the chain did rub on them.

    Skoolshoes
    Free Member

    I had a search for some large nylon m6 washers but couldn't find anything big enough 😥

    MrCrushrider
    Free Member

    thats very smart – i love homemade stuff like this. i might have to have a pop at one of these for my winter bike….

    Skoolshoes
    Free Member

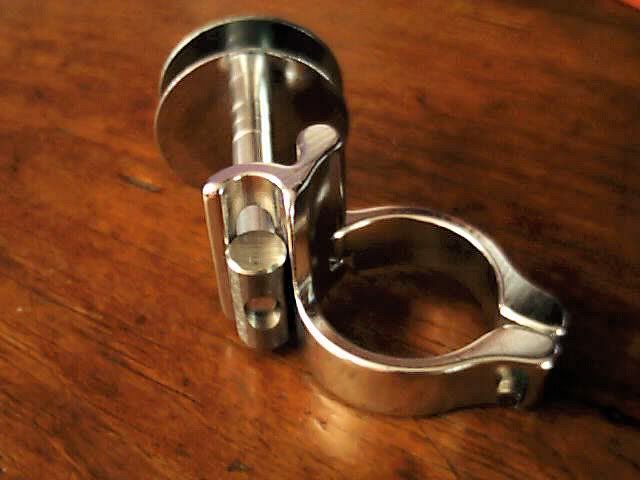

    Got the weight down even lower with my second attempt. The steel washers have been replaced with nylon 🙂

    clubber
    Free Member

    Since you're publishing weights…

    Why not cut down the washer so you only leave the bottom half (well and the hole obviously) that you actually need?

    Or better still, get some nylon sheet and make a proper 'cage'.

    Nice work though.

    Skoolshoes
    Free Member

    TBH, by chopping the top off the washers I'd probably only save a gram or two. My main gripe before was the weight of the heavy steel washers, but now it weighs a lot less… job done!

    clubber
    Free Member

    Well, for neatness then 😉

    jfb01
    Free Member

    I made one of these a few years ago for an on one & did cut the top off the washers , the problem was that sometimes the outer washer got knocked & turned , making it less effective , & looked silly which was more important.

    ginsterdrz
    Free Member

    Superb!

    Cougar
    Full Member

    Excellent MacGyvering, well done.

    Any chance of an in-situ pic?

    Skoolshoes
    Free Member

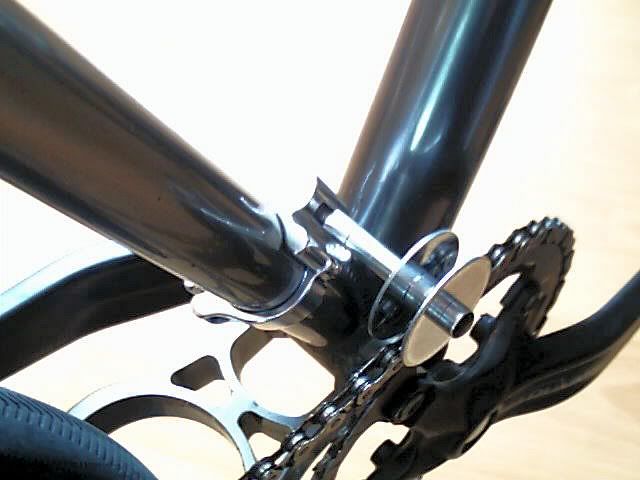

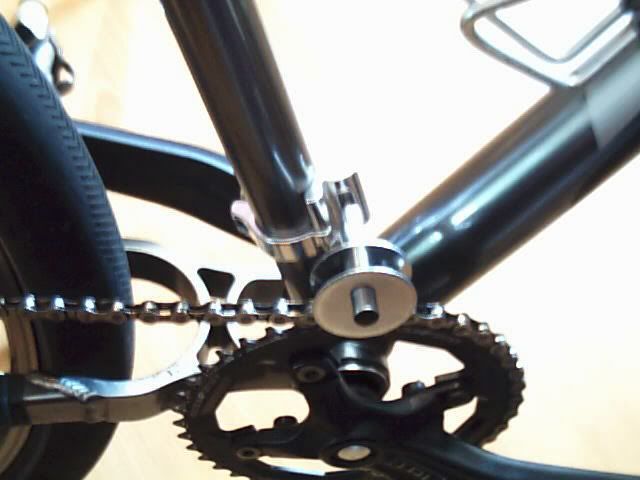

    Here ya go!

    Cougar
    Full Member

    Sweet (-: That's awesome.

    leggyblonde
    Free Member

    Nice work Augustus!

    that looks better than some of the "proper" ones

    packer
    Free Member

    Good job!

    Another alternative would be to use an actual roller like the ones on MRP and Blackspire chain devices. They are available seperately as spares from CRC…

    Skoolshoes
    Free Member

    I just sold a DMR Chain reactor/chain cage combo (and my spare pulleys) that I was using before this! They are good but I prefer this device because it's silent and the bike feels smoother to ride now.

    walla24
    Free Member

    where did you buy the nylon washers from in the end please?

    and do you take orders?…no really 😀

    DT78
    Free Member

    Wow, nice work. Where did you source all the bolts and bits – could I just turn up to my local b&q?

    Skoolshoes
    Free Member

    DT78, I got the bolts from Tastynuts. You might find them in B&Q, but probably only steel versions.

    walla24, I can make you one if you like?

    sam42
    Free Member

    Inspired by Skoolshoes-


    14012011285 by sam2442, on Flickr

    Skoolshoes
    Free Member

    I have a spare half chain guide going if anyone’s interested?
    All you’ll need to buy is a front mech clamp and M6 Barrel nut.
    Payment by paypal, £6.50 posted.
